Automatic Screen Printing Machine for Battery

Product Description

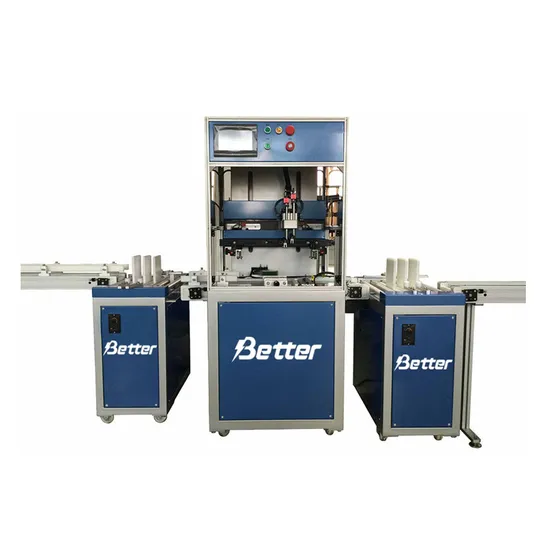

Automatic Screen Printing Machine
The screen printing machine adopts PLC control and human machine interface digital operation. This machine adopts mechanical transmission, with accurate positioning and fast speed. It provides a variety of function settings, to achieve the operation of data, standardization, and humanization of the perfect requirements. Innovative structure design, with servo motor guide rail guiding system, running fast, stable and smooth, automatic turnover, automatic printing, Led cold light source instant curing, automatic, over-turn 90°. Accurate positioning, energy saving, automatic feeding, labor saving, ensure printing quality.
Main Parameter

NO	Item	Parameter
1	Maximum printing area	160mmx200mm
2	Steel plate size	200mm*250mm
3	Printing color	Two colors
4	Printing precision	±0.05mm
5	Control system	Panasonic
6	HMI	WEINVIEW
7	Positioning system	Mechanical positioning
8	Conveyor drive	Servo motor + mechanical drive
9	Working cycle	About 6S
10	Working pressure (Mpa)	0.4~0.6Mpa
11	Machine structure	combination
12	Production capacity	About 500pcs/hr
13	Power Supply	220V 50/60Hz
14	Positioning induction	Optical fiber
15	Machine dimension	3000mm*1750mm*1700mm

Structure Configuration

Structure	Item	Accessory Name	Configuration Description
Basic structure	Frame	Q235A+ high quality square tube	Frame and parts
	Sealing plate	high quality cold-rolled sheet
	Other parts	cast aluminum and alloy aluminum
Back and forth system	Back and forth drive	Rodless cylinder	SMC
	Guiding	Guide rail	HIWIN
Drive system	Drive	Servo motor	Panasonic
	Guiding	Mechanical drive	combination
Control system	Control circuit	PLC+HMI	Panasonic
	Pneumatic control	solenoid valve	SMC

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

---
