Basic Info.
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Thick Material
Needle Number
Twelve Needles
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery
Embroidery Area
500*1200mm, 400*500mm
Warranty of Core Components
1 Year
Name
Multi Head Embroidery Machine
Key Selling Points
Automatic
Overall Dimensions
1200X1210X1630mm
Type
Cap Embroidery Machine
Product Name
Cap Embroidery Machine
Application
Cap/T-Shirt/Flat/Towel/Leather/Jacket Embroider
Transport Package
Wooden Package
Production Capacity
10 Set/Sets Per Month
Product Description
Product Description
Specification

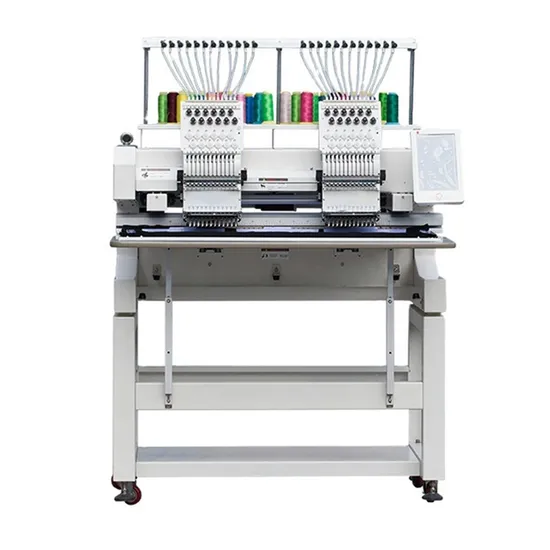

MODEL: 1202 2 Heads 12 Needles Embroidery Machine 1. Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc. 2. Embroidery area: 400*500mm 3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface 4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump. 5. Automatic thread trimmer 6. The running speed:100- 1200rpm 7. 260 degree Wide cap frame unit 8. Automatic color change and thread break detection 9. Start, Stop and emergency Stop Button 10.Design Tracing Available 11.One-Step Tracing 12. 10'' touch screen display control pannel, showing real time stitching 13. Memory size: 500 Patterns,200 Million stitches 14. Computer Reads Multiple Design Formats.Such As DST.DSB And More. 15. USB port 16.Networkable And Wi-Fi capable 17. Control system can be updated easily 18. Multi-languages:Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish 19. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available 21.Equip With Laser Positioning(Unit price 15 $ ) 22.Woodencase Packing. 23.Machine Size: 1200x1210x1630mm Packing Size:1480x1030x1050mm 24.Net Weight:310KG Gross Weight:400KG
| Name | QTY. | Name | QTY. |
| complete machine | 1set | bobbin winder | 1set |
| body stand | 1set | owner's manual | 1pc |
| front working table | 1set | tool box | 1pc |
| cap station | 1set | needle | 2packs |
| cap framehoop | 2pcs | machine-oil | 1pc |
| cap driver | 2set | bobbin case | 2pcs |
| round hoop 95mm | 4pcs | bobbin core | 4pcs |
| round hoop 145mm | 4pcs | power cable | 1pc |
| round hoop 190mm | 4pcs | needle plate screw | 4pcs |
| Square hoop 240*240mm | 4pcs | long flat nose pliers | 1pc |
Square hoop
335*335mm | 2pcs | forceps | 1pc |
pantograph
1650*450mm | 1pc | hexagonal socket
wrench | 1set |
| hoop support | 2sets | thread picker | 1pc |
| aluminum table support | 2pcs | 4*25 inner hexagon | 2pcs |
| plastic table support | 1pc | 4*12 inner hexagon | 2pcs |
| flash diskUSB | 1pc | 4*8 cross screw driver | 2pcs |
| screw knife - | 1pc | 5.5-7 wrench | 1pc |
| screw knife + | 1pc | 8-10 wrench | 1pc |
| screw knife - 5x125 | 1pc | 17-19 wrench | 1pc |
| screw knife + 5x125 | 1pc | 22-24 wrench | 1pc |
| S#5.5mm | 1pc | scissors | 1pc |
Embroidery effect Factory workshop Packing & Delivery
>>
