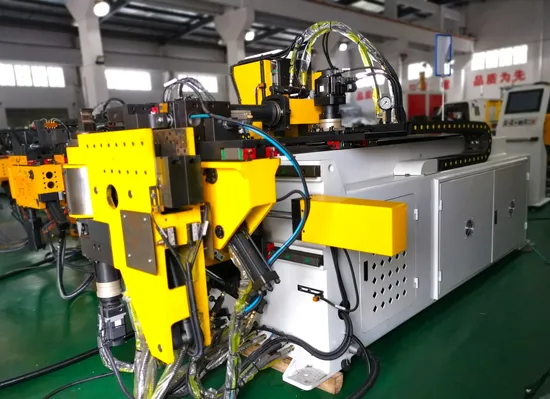

Automatic Semi Hydraulic Servo Aluminum Copper Stainless Steel Metal Pipe Tube CNC Bender Bending Machine

Product Description

Product Description World-class Brand accessories, such as Siemens, Mitsubishi, YUKEN, etc.
Equipped with automatic error and fault detection function, making it easy for operators to eliminate obstacles
Each bend can be set with compensation value, speed, and demolding gap
Boosting technology can control the thinning rate within 13-19%
With advanced mandrel pulling function and automatic lubrication system
Each layer of mold can be individually controlled for speed
Adjustable wrinkle resistant plate. Fixed seat and lubrication system.
The feeding method can be selected as direct or pinch feeding
Externally expanded fixtures can effectively improve material utilization (optional)
Manual centralized lubrication system
Can connect automated feeding and unloading equipment (optional)
Johnsheng patented operating software, equipped with IPC and touch screen
Can automatically convert X, Y, Z coordinate values into Y, B, C machining values
Automatic radiator ensures long-term stable operation of the machine; Upgradable to CNC cooler (optional)
Product Parameters

Specification/Model		1. SB50CNC	Remark
Max bending capability		Φ50mm×3mm	1. The Minimum bending diameter of CNC bending machine based on the pipe diameter 2.The Max bending diameter of CNC bending machine can accordingto the customers requirement 3.The Max length of mandrel of CNC bending machine can according to customers requirement
Max bending radius		R250mm
Min bending radius		R20mm
Max bending angle		190°
Max feeding length		2600mm
feeding method		direct feeding clamping feeding
Working speed	Bending speed	Max 85°/s
	Rotary speed	Max 200°/s
	Feeding speed	Max 1000mm/s
Working accuracy	Bending accuracy	±0.1°
	Rotary accuracy	±0.1°
	Feeding accuracy	±0.1mm
Information inputting method		1. axisX . Y. Z 2.working valueY. B. C
Bending method		1.Servo bending : 1kw(more than 3 axis 2. Hydraulic bending
Power of rotary servo motor		750w
Power of feeding servo motor		1kw
Max bending groups		1. 12 2. 33
Max storing components		1. 330 2. 125
Motor power		7.5kw
Oil pressure		12 Mpa
Size		4900 x 1300 x 1300mm
Weight		2500kg
