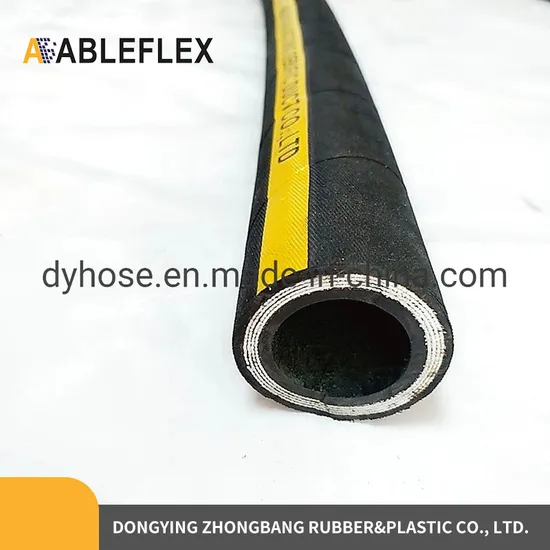

Hydraulic Hose 4sh/4sp Standard Hose High Pressure Mining Rubber Hydraulic Hose Pipe Hydraulic Hose for General Mining Equipment

Product Description

Product Description
Description
Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature: -40°C to +100°C
Application: Petroleum based hydraulic fluid,gas, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
Technica Data Sheet

Item Code	Size		ID mm		OD mm		WP		BP	B.R	Weight
	mm	Inch	Min	Max	Min	Max	BAR	PSI	BAR	mm	Kg/m
4SP-06	6.3	1/4"	6.2	7	17.1	18.7	450	6525	1800	150	0.60
4SP-10	10	3/8"	9.3	10.1	20.6	22.2	445	6452.5	1780	180	0.76
4SP-13	12.5	1/2"	12.3	13.5	23.8	25.4	415	6017.5	1660	230	0.90
4SP-16	16	5/8"	15.5	16.7	27.4	29	350	5075	1400	250	1.10
4SP19	19	3/4"	18.6	19.8	31.4	33	350	5075	1400	300	1.48
4SP-25	25	1"	25	26.4	38.5	40.9	280	4060	1120	340	2.02
4SP-32	31.8	1-1/4"	31.4	33	49.2	52.4	210	3045	840	460	3.00
4SP-38	38	1-1/2"	37.7	39.3	55.6	58.8	185	2682.5	740	560	3.55
4SP-51	51	2"	50.4	52	68.2	71.4	165	2392.5	660	660	4.90

Item Code	Size		ID mm		OD mm		WP		BP	B.R	Weight
	mm	Inch	Min	Max	Min	Max	BAR	PSI	BAR	mm	Kg/m
4SH19	19	3/4"	18.6	19.8	31.4	33	420	6090	1680	280	1.64
4SH-25	25	1"	25	26.4	37.5	39.9	380	5510	1520	340	2.03
4SH-32	31.8	1-1/4"	31.4	33	43.9	47.1	325	4712.5	1300	460	2.45
4SH-38	38	1-1/2"	37.7	39.3	51.9	55.1	290	4205	1160	560	3.35
4SH-51	51	2"	50.4	52	66.5	69.7	250	3625	1000	700	4.50

Related hose list-Hydraulic Hose

Hydraulic Hose	Reinforcement	Product Name
	One steel wire braided	SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17
	Two steel wire braided	SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC
	One/two wire braided	SAE R16
	Four steel wire spiral	SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH
	Four/six wire spiral	SAE R13,SAE R15
	Textile fiber braided	SAE R3,SAE R6
	High tensile strength Cord+steel wire spiral	SAE R4

Application
Company Profile Dongying Zhongbang Rubber& Plastic Co., Ltd is a leading supplier for various of rubber hoses and PVC hoses. The factory has more than 13PCS rubber hose production line, and more than 10PCS PVC hose production lines. Factory has ISO, CE, RoHS, SGS and many other certification for hose quality. Hose good quality, more than 8 years international trading, and more than 15 years engineering experience is our advantage. The primary aim of our company is to offer high quality hoses and the best services for each customer. Our business has a situation here - all of our customers are brand. They are famous and well accepted by local customer. They commit to their consumer value. They are loved by people and never fail their expectation. Although they could be all different, they have one thing in common - they work with us.
Over 2 years of experience working with brand, we know exactly what is important to you and consumer in the hose industry. We want to see you success. We want to work for hero. For the last two years, this is always the value we believed in. Our products has exported to more tahn 10 coutries, and our main market is Europe, South America, Afric, Southeast Asia and so on, Especially for UK, France, Russia, Egypt, India, Kenya, Chile, Peru, Spain, The Phillipines, Vietnam. Professional products and service gain very good reputation in Foreign Coutries. Welcome visit us, and for more cooperation.
Packaging & Shipping
Shipping
Different amount of time will be required for difference FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plastic bags for inner package.Out package you could choose the carton box or woven bags.
Q2. What is your terms of payment?
A: T/T ,30% In Advanced, and 70% Before delivery,Or L/C. The pictures of products detials and packages will be sent before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take within 10 to 30 days as receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.But the delivery charges will be deducted from the customer's future order.
Q6. Do you test all your goods before delivery?
A: Yes,we have three inspection steps to make sure the products you received in high quality.
Q7: Are you accept the OEM?
A: Yes,we support the OEM or ODM.
Q8: Our port of shipment?
A: Qingdao,China or as your request.

---
