Rugged IP67 20W 2T2R AES Encryption LTE Outdoor Base Station Transceiver

Product Description

Product Description
The ZKManet7561 is a highly integrated private network base station, mainly composed of baseband processing unit (BBU), remote radio remote unit (RRU) and EPC. It is a miniaturized LTE private network base station specially developed according to the needs of the private network communication market, supports dual-channel antenna configuration, works in the 1.4GHz band (400M/600M/1.4G/1.8G can be customized), supports 5MHz, 10MHz, 20MHz bandwidth. It is especially suitable for providing wireless coverage solutions for various industries in the private network communication market, such as smart cities, intelligent transportation, subways, tunnels, mines, petroleum, ports, armed police, civil air defense, emergency and other environments.Features
* Highly integrated EPC, BBU and RRU
* Based on TD-SCDMA technology
* MIMO dual-stream beamforming technology
* High safety USIM quintuple authentication and encryption
* Supports GPS/BD
* Rugged IP67
Specifications

RF Characteristics
System Mode	TDD LTE
Frequency	1447-1467MHz (400M/600M/1.4G/1.8G Customizable)
RF Channel	2T2R
Output Power	2*10W
3GPP	Release 9
Sensitivity	≤-101.5dBm
Network Characteristics
Authentication	USIM Quintuple Authentication
Up/Downlink rate	40/80Mbps
Time Slot Ratio	cfg0,1,2,3 … 10
Maximum Concurrent	128
Encryption	AES
Electrical Characteristics
Working Voltage	AC 100-240V
Power Consumption	≤150W
Physical Characteristics
Weight	15kg
Dimensions	370*295*150mm
IP Rating	IP66
Storage Temp.	-45ºC~85ºC
Working Temp.	-40ºC~75ºC

Dimensions

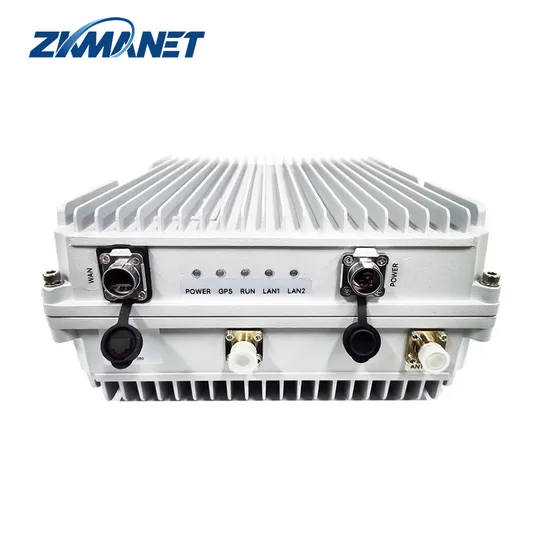

Panel Description
1 LAN Port
2 Power Indicator
3 GPS Indicator
4 Running Indicator
5 LAN1 Indicator
6 LAN 2 Indicator
7 Power Input Port
8 Antenna Interface-Type N
9 Antenna Interface-Type N
