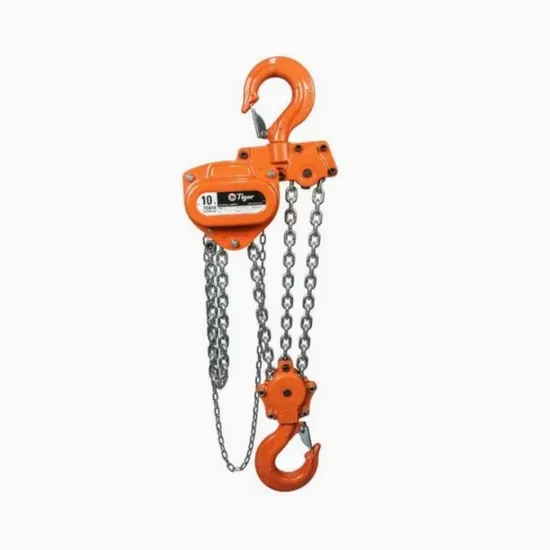

HS-CB Type High Quality Lifting Chain Hoist

Product Description

Product Description
Use
HSZ-CB series Chain Hoist is one kind of use simple, carries the convenience the manual hoisting machinery, is suitable for the factory, the mine,the Construction site, the agricultural production as well as the wharf, the dock, the warehouse and so on serves as the mounting machinery, the hoisting up cargo and the loading and unloading vehicles, especially regarding open-air and non-power source work, has its important function.

HSZ-CB series chain block may manual lift heavy objects the traveling bogie with each kind of manual single track driving necessary use composition,is suitable is built on stilts the transportation in the single track, manual single beam bridge type hoist crane and on cantilever crane.
Detailed Photos

Characteristic
HSZ-CB series chain block on the strural design and performance, has five features:
1 .Safety and reliable in use, easy to maintenance
2. High mechanical efficiency, easy to lift
3. Light weight, easy to carry
4. Beautiful appearance, small size
5. Durable in use
Product Parameters

WORK LOAD(T)	0.5	1	1.5	2	3	5	10
LIFT(M)	3	3	3	3	3	3	3
HAND CHAIN LIFT(T)	25	33	34	34	35	39	42
CHAINS	1	1	1	1	2	2	4
DIA OF LAOD CHAIN	6	7.1	7.1	8	7.1	9	9
NET WEIGHT(KG)	9	11	13	21	22	40	77
GW (KG)	10	12	14	22	23	42	85
WOODEN CASE SIZE	30X17X32	30X17X32	30X17X32	28X19X23	30X17X32	40X20X34	62X50X26
