Basic Info.
Certification
ISO 9001:2000, ISO 9001:2008, CCC
Usage
Cargo, Cargo And Passenger
Battery
Lead-Acid Battery
Overall Dimmension
2960*1180*1360
Cargo Box Size(mm)
1500*1100*330
Minumum Ground Clearance(mm)
150
Minimum Turning Radius(M)
4
Motor, Controller(W)
60V1000W
Range Per Charging(Km)
50-110
Front/Rear Brake Type
Front/Rear:Drum
Transport Package
Iron/Carton Package
Production Capacity
100, 000 Unit Per Month
Packaging & Delivery
Package Size
580.00cm * 230.00cm * 230.00cm
Package Gross Weight
5400.000kg
Product Description
Main Products
Product Description

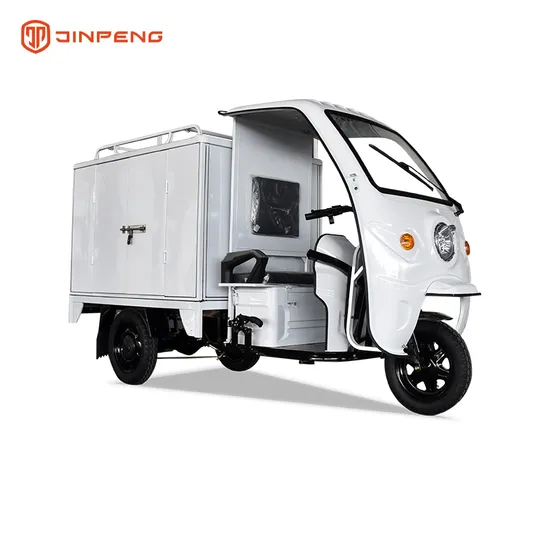

Cheap New Delivery Trike Electric Cargo Tricycle for Express Three Wheel Vehicle with Closed Carriage Trike Rainproof Cab
JINPENG is established in 2004, with rich experience in electric vehicle manufacturing. JINPENG specializes in the R&D, production, and sales of various electric vehicles. Main product categories: electric passenger tricycles, electric cargo tricycles, electric motorcycles, electric mobility scooters, low-speed cars, high-speed cars, etc.
| Optional colors | red, blue, green, yellow, grey, white |
| Model | XT150 |
| L×W×H(mm) | 2900×1130×1630 |
| Cargo Box size(mm) | 1500×1050×930 |
| Wheel base(mm) | 1980 |
| Wheel track(mm) | 870 |
| Minumum ground clearance(mm) | ≥150 |
| Minimum turning radius(m) | ≤4 |
| Curb weight(kg) | 250 |
| Rated load (kg) | 300 |
| Max speed(km/h) | 30 |
| Grade ability(%) | ≤15 |
| Battery | 60V45AH-100AH |
| Motor, Controller(w) | 60V1000W |
| Range per charging(km) | 50-110 |
| Charging time(h) | 6~8h |
| Front shock absorber | φ33 Drum shock absorber |
| Rear shock absorber | 50×85 four pieces leaf spring |
| Front/Rear tyre | 3.5-12/3.75-12 |
| Rim type | Iron |
| Front/Rear brake type | Front/Rear:Drum |
| Parking brake | Hand Brake |
| Rear axle structure | Integrated Rear Axle |
| CKD | 56 Units/40HQ |
| SKD | 40 Units/40HQ
15 Units/20GP |
