Beans and Peas Food Universal Grinding Pin Mill Crusher Grinder

Product Description

Product Description Product Description

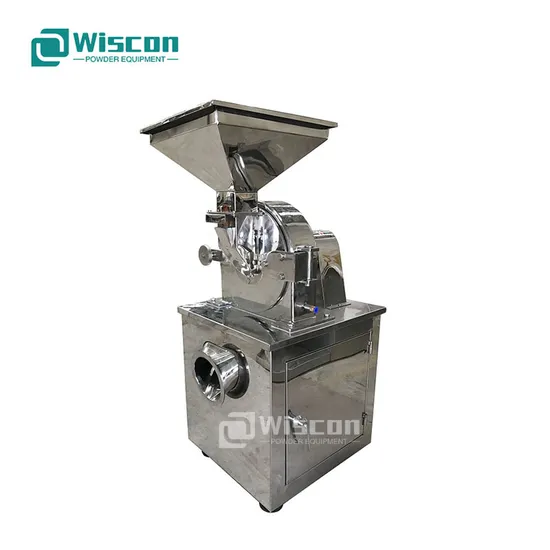

The universal mill is a compact, high-speed impact mill capable of fine size reduction with interchangeable element configurations.
The mills have been developed to meet the specific requirements of the food, pharmaceutical, and chemical industries. Typical
milled particle size range down to a D90 of 150mesh.
Typical Application
Food: Biscuit, Cocoa press cake, Dried peas, Potato starch, rice, Soy Protein, Sugar, Cocoa, Wheat gluten, Fennel, Cumin, Corn,
Pepper, Soybean meal, Garlic, Pumpkin, Spices, sesame seeds, chili, onion, Ginger, Tea Powder
Pharmaceuticals: Herbal medicine, Analgesics, Laxatives, Anti-convulsant, Gastric reflux, suppressants, Vitamins, Cultures, Aspirin,
Paracetamol
Chemical: Carbonates, Chlorates, Chlorides, Citric Acid, Fertilizers, Fungicides, Gum Arabic, Gypsum, Hexamine, Insecticides,
Metallic Salts, Nitrates, Oxides, Pesticides, Phosphates, Stearates, Talc, Urea Resin
Working Principle
The Universal mill is composed of a frame, grinding chamber, grinding disk, driven motor, and mesh screen. The material to be
ground is fed into the mill by gravity, impact, and shearing between the rotating and stationary disk. the fines are filtered through
the screen mesh, the coarse fraction is left in the housing to continue to be milled, and this process repeats until all the materials
are milled. The fine powders from the outlet are collected. dust will be collected by a bag filter.
Product Features Features and Benefits
Capable of fine grinding to 120mesh
Designed for soft to medium-hard materials with a Moh's hardness of 3.5 or less
Interchangeable grinding elements for different materials
Particle size can be adjusted by mesh size
Compact design & dust-free operation
Easy access for simple cleaning and maintenance.
Optional Features
Various types of feeding arrangements can be tailored to fit into the production line.
Low-Temperature control milling applies to heat-sensitive materials.
Cold-protected grinding chamber jacket design for heat-sensitive materials.
Cyclone and bag filter for powder collection and dust removal
Explosion-proof and V/F motor for the requirement.
Build Materials and Finish
SS304 Stainless steel with contact parts for standard design.
SS316 Stainless steel and Wear-resistant alloy for grinding media
matt or brushed surface finished
Product Parameters

Model	Capacity (kg/h)	Feed Size (mm)	Fineness (mesh)	Power (KW)	Dimension (mm)
UM-20	60-150	≤6	20~150	4	550×600×1250
UM-30	100-300	≤10	20~150	7.5	600×700×1450
UM-40	160-500	≤12	20~150	11	800×900×1600
UM-60	300-1500	≤12	20~150	22	1600×1000×1470
UM-80	500-2000	≤15	20~150	30	1750×1100×1610

Product Details
Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food, pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for universal impact millIn order to quote you the right universal impact mill price, Please specify as much information as possible- What are the materials to be handled- What is the final desired particle size?
- What is the starting particle size?
- Is the material friable?
- Is the material sensitive to heat?
- What is the maximum allowable temperature during milling?
- Is the material abrasive?

---
