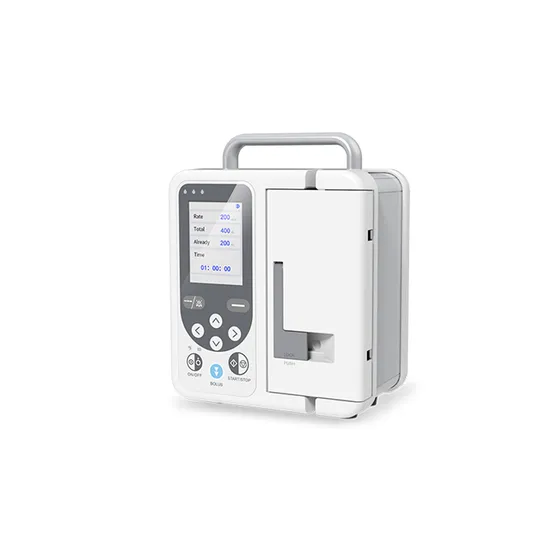

Sp750 Portable Veterinary Volumetric Infusion Pump Medical Device Animal Equipment

Product Description

Introduction
The product is a volumetric infusion pump, features in high safety, easy operation and long life. Flow control with high accuracy and comprehensive alarm measures ensure patient's safety and optimum therapeutic effect. Function
1) Flow control with high accuracy ensures optimum therapeutic effect.
2) Be compatible with most standard IV Sets.
3) New IV set provided by user can be calibrated by suppliers, and infusion parameters can be input into the pump, which ensures accuracy.
4) 2.8'' TFT-LCD.
5) Operate with keys.
6) Residual infusion time can be displayed during infusing.
7) With reminder function for starting infusion.
8) Alarm for occlusion, air bubble, door open and motor failure, etc.
9) Threshold for pressure alarm can be adjusted by medical personnel.
10) Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally.
11) A.B.S--ANTI BOLUS system prevents instantaneous high-dose injection from the sudden obstruction disappearing.
12) Stop infusing automatically during alarm(except for "NEAR END", "KVO", and "LOW BATTERY" alarms).
13) Power supply: AC/DC and built-in lithium battery.
14) Infusion parameters can be saved after power off. Performance
Type: volumetric infusion pump
Infusion rate: 1~699mL/h, increment: 1mL/h
Total volume: 1~9999mL, increment: 1mL
Accuracy: ±5%(use the IV set calibrated)
Display information: flow rate, total volume, accumulated infusion volume, residual time
Safety classification: class I,type BF applied part
Waterproof degree: IPX2
Working mode: continuous working
Alarm functions: near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, door open, occlusion, infusion reminder and motor failure.
Air bubble detector: ultrasonic
TFT: 2.8''
KVO rate: 1mL/h
Sensitivity for pressure sensor: 1~3 grades(it can be adjusted by professional medical personnel)
Power supply: AC:100~240V, 50/60Hz
Rechargeable Li-polymer battery, 7.4 V/5000mAh
Special safety measures:
Accompanying IV-set clamp prevents liquid flowing freely when the pump door opens accidentally.
Air bubble detector with high accuracy prevents air bubbles from entering patient's body.
Pressure sensor prevents occlusion for IV set.
A.B.S system, when the high-voltage occlusion alarm appears, stop infusing immediately, and eliminate the pressure of the IV set automatically, which prevents instantaneous high-dose injection from the sudden obstruction disappearing.
Infusion parameters during infusing are protected against being changed arbitrarily.
With password protection function(in system parameter setting and IV set type interface). Accessories
A power cord
A user Manual
Physical characteristic
Dimension: 143.6. mm(L)×151.8mm(W)×195.3 mm(H)
Weight:about 1.9kg

---
