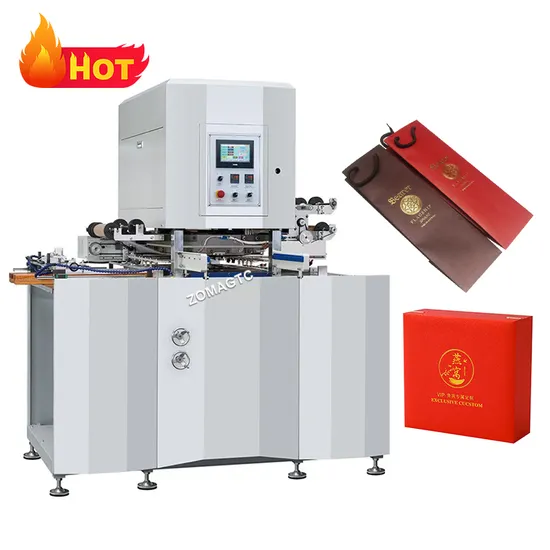

Automatic Hot Gold Foil Stamping Machine Invitation Card Paper Film Logo Hot Foil Embossing Bronzing Stamping Machine for Leather

Product Description

Product Parameters

Model	JX-55	JX-60	JX-75	JX-80
Max. Paper feeding size	540*450mm	600*500mm	750*600mm	800*600mm
Min. Paper feeding size	100*100mm	150*150mm	150*150mm	150*150mm
Max. Hot stamping size	300*250mm	500*400mm	500*400mm	600*500mm
Working Speed	40 times/min	35 times/min	35 times/min	35 times/min
Max. Feeding /Delivery pile height	450mm	450mm	600mm	600mm
Voltage	220V, 3.5kw	220V, 4kw	380V, 8kw	380V, 8kw
Dimension	1500*1200*1600 mm	1800*1300*180 0mm	2100*1400*2050 mm	2200*1500*2150 mm
Weight	650kg	750kg	1500kg	2000kg
Machine Pressure	3T	5T	8T	28T
Embossing	no	no	no	yes
Concave and convex foiling	yes	yes	yes	yes
Foil Stamping Precision	0.1mm Or 1mm	0.1mm Or 1mm	0.1mm	0.1mm
Push rails	yes	yes	yes	yes
Foil stamping roll holder	Standard 1 Can customized to 2 rolls			Standard 2 rolls
Note: For JX55/60/75 models, if needed to customize to 2 sets of foil holding rolls, add $300 to the total

Product Description
Automatic High Speed sheet to sheet Big Pressure Hot Foil Stamping Machine
Features: This machine is equipped with an imported contractor and has a system of solid state heating. This machine has a mirror chrome plating and lower suction device. It is suitable for bronzing anodized aluminum onto various materials, through bronzing, we can get exquisite finished products. This machine is not only suitable for flat bronzing, but also can be rich layer of concave and convex bronzing effect. This machine is equipped with all parts of the unit original imported for the famous brand, bronzing high efficiency, good performance, is a very ideal and cost-effective bronzing equipment. It is equipped with infrared equipment to ensure the safety of the operator. According to your requirements, you can choose to add the positioning system or not, positioning system can realize tracking position, to ensure high precision hot stamping-0.1mm. Pressure is adjustable, speed is fast, easy to operate, PLC touch screen It has a wide range of application: Thickness: 120gsm to 3mm Fit for foil stamping on paper, cardboard, carton, adhesive sticker, plastic board, PET, PVC, PU, Leather, Film, Frosted PVC, Binding and layout paper, etc

---
