Ts Convert FTA Satellite Receiver 16apsk 32apsk DVB-S2 to IP Demodulator RF to IP Adapter

Product Description

Ts Convert FTA Satellite Receiver 16apsk 32apsk DVB-S2 to IP Demodulator RF to IP Adapter
Product Overview

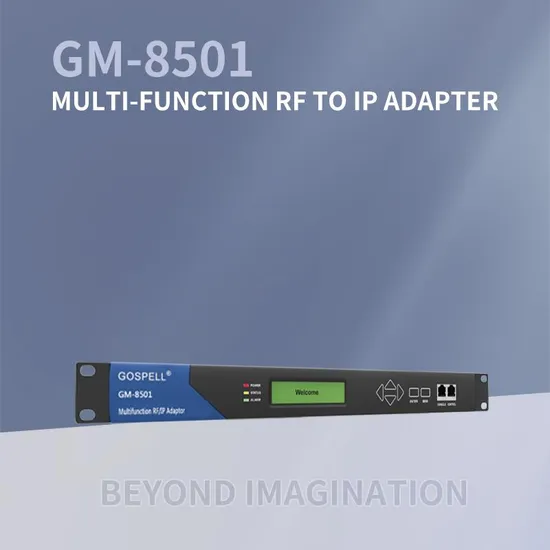

GM-8501 is a multifunctional RF to IP adapter.
It can receive 12 channels of DVB-C/T2/T/S2/S radio frequency input, and supports up to 120Mbps stream.
After demodulation, the TS stream is multiplexed and scrambled, and the TS stream is finally encapsulated in UDP format And output in IP mode.
Supports up to 16 channels of output. This equipment adopts the "module management function", which can well meet the current and future digital TV system needs of customers.
In terms of management and maintenance, it supports Web-based management.
Main Features

12-channel RF input supports a maximum stream of 139Mbps; 16-channel IP address output; The bit rate range of IP output data: 1~800Mbps; The payload of UDP is 7 TS packets of 188Bytes Support multiplexing, scrambling, PSI /SI processing Maximum number of multiplexed programs 512 The multiplexing part supports automatic generation and manual upload of SI/PSI information Can automatically generate or manually edit network information, support uploading local network information segments Support PID filtering, mapping and transparent transmission, support PCR correction selection, 188/204 packet length adaptive The channel parameters of data input and output can be flexibly configured, and the input code stream can be automatically detected Support UDP, ARP, ICMP, IGMP and other network protocols Support HD/SD program transmission Support Web network management, support remote online upgrade The device management page and related technical information support both Chinese and English With power-down memory function Support the import and export of equipment working parameters Powerful background configuration function and network management monitoring system to ensure high stability of equipment operation Technical Specifications

RF input interface
Number of ports	2*12
Interface Type	Imperial Female
Modulation	DVB-C DVB-T/T2 DVB-S/S2
Input frequency	DVB-C :177.5~862MHz DVB-T/T2:177.5~862.MHz DVB-S/S2:950~2150MHz
Symbol rate or bandwidth	DVB-C :5 ~ 6.952MBaud/s DVB-T/T2:8MBaud/s DVB-S/S2:2.000~45MBaud/s
Polarization direction	DVB-S/S2:Horizontal and vertical
IPMultiplexed output
Stream output	Number of output TS streams, 0~16; The total number of output programs, 0~512 Single output TS includes the number of programs, 0~64 Maximum effective output code rate≥800Mbps
Output stream PSI information	Standard, ISO/IEC 13818-1, DVB SI (ESI EN300468); Form type, PAT/PMT is automatically regenerated SDT can automatically generate or forward manually uploaded segment files NIT/BAT can forward manually uploaded segment files Whether TDT/TOT is automatically generated is optional
Management
Socket type	RJ-45 10/100 Base-T
Number of ports	1
Power consumption
Input voltage range	110 - 240V AC
Input frequency range	50/60Hz
Power consumption	≤90W
Working environment
range of working temperature	0ºC - 45ºC
Storage temperature range	-20ºC - 80ºC
Environmental humidity range	10% - 90%,No condensation
Physical index
Dimensions (W x H x D)	483mm×44.5mm×450mm
weight	≤6.0kg

Company Profile
Gospell was awarded "National Electronic Information Industry Model Enterprise" in 2013, and identified as "Famous Trademark" in 2014, also awarded "Hunan Province Governor Quality Award" in 2014, gained "Quality Credit Rating Certificate AAA" in 2015.
"High-frequency Microwave Copper-clad Plate Industry Model Enterprise" in 2015, "Beijing Science and Technology Award" in 2016, Gospell has a much higher brand influence in domestic and foreign markets.
FAQ
Q1: How to get a sample?
A: Sample order is acceptable. After price confirmation, you can require for samples to check our quality. If you need samples, we will charge for the sample and freight cost. The sample fee will be refunded if you place order.
Q2: What about the lead time?
A: In general, the lead time is about 25 to 35 days. But please confirm the exact delivery time with us as different products and different quantity will have different lead time.
Q3: How about the packing and shipping?
A3: Normally, we have carton for packing. If you have any other special requirements, please feel free to contact with us.
Q4: How about the OEM/ODM services?
A4 : We provide all kinds of OEM/ODM services ,
For example: Logo print on casing ,Customized packing, Software Customization. Please contact us to check the detail things before placing order.
Q5: How about the payment terms?
A5: We accept 30%T/T in advance, the 70% T/T balance before the delivery.
L/C, Money Gram and Western Union are also available.
Q6: How about warranty and procedure?
A6: Warranty time is 12 months. If you have any problem, please contact us in time, we will help you to resolve
the problem.

---
