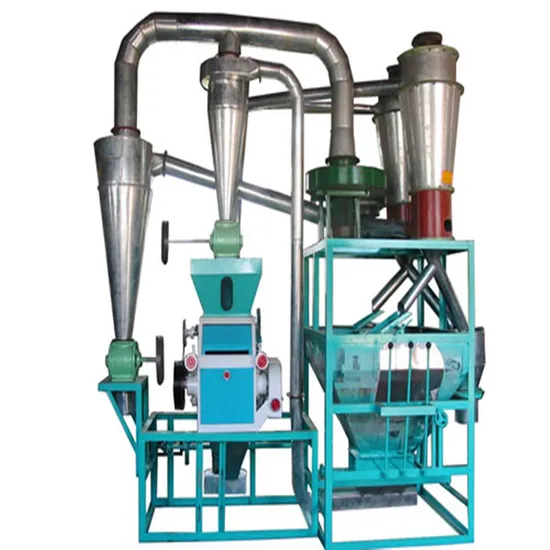

Small Scale Automatic Wheat Flour Mill Single Machine

Product Description

300-550kg/h 6FTF Single flour mill for maize,wheat,soybean,rice,millet

flour mill machine is a high-automatic single machine. It can make corn flour form 60 mesh to 100 mesh, also can do finest herbal medicine flour and chili flour. It's not noly for flour mill also can be used many industry.

FEATURES:
1. High degree of automation;
2. High operating reliability thanks to optimal design;
3. Lower energy consumption and high efficiency, low cost;
4. Designed to provide top safety and sanitation;
5. Flexible adjustment, easy installment and operation.
FUCTIONAL DESCRIPTION:
Through mechanical force of roll grinder, the germ, epidermis and endosperm are neatly separated. The pulverizer ensures that a kernel with nutrient content remains after the milling process of endosperm is completed. The grain mill therefore produces flour with the required particle size. This machine is an ideal equipment to small and medium size coarse milling plants.

Type	Capacity (KG)	Roller (MM)	Speed of FastRoller (R/MIN)	Power (KW)	Weight (KG)	Size (MM)
NF-2235	300-350(S) 400-500(D)	Dia 222×350(S) Dia 220×350(D)	650	7.5+3(S) 15+3(D)	600(S) 1100(D)	2200*800*4000(S) 4000*1300*4200 (D)
NF-2240	400-450(S) 500-550(D)	Dia 222×400(S) Dia 220×400(D)	650	11+3(S) 22+3(D)	700(S) 1250(D)	2200*900*4000(S) 4000*1500*4200 (D)
NF-2250	500-550(S) 600-650(D)	Dia 222×500(S) Dia 220×500(D)	650	15+3(S) 30+3(D)	800(S) 1400(D)	2200*1000*4000(S) 4000*1800*4200 (D)

---
