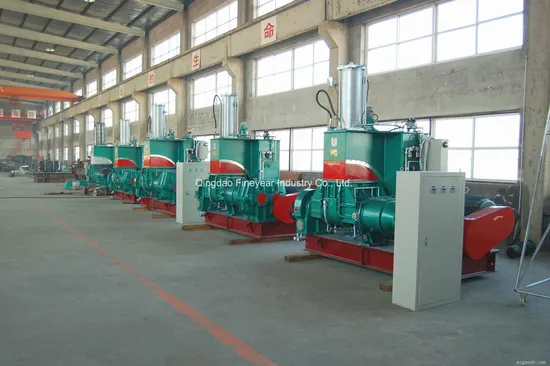

Good Quality Banbury Internal Mixer Machine

Product Description

Parameters\version	X(S)N- 110L	X(S)N- 35
Working Volume	115 Liter	35
Driving motor power( KW )	185 KW	55
Tilting motor power ( KW )	5.5 KW	2.2
Tilting angle	140 °	140 °
Revolution speed of rotor( front/rear )	30/24.5 rpm	30/24.5 rpm
Pressure of compressed air	0.6-0.8 MPa	0.5-0.8 MPa
Consumption of compressed air	≥ 1.5 m 3 /min	≥ 0.9 m 3 /min
Pressure of cooling water (rubber mixing )	0.5-0.6	0.3-0.4
Pressure of heating steam ( plastics mixing )	0.5-0.8	0.5-0.8
Overall Dimension (mm)	4200x3000x3550	3200x1900x2950
Weight (kg)	14,900	6300

The machine can satisfy the requirement during mixing process of rubber sheet cooling,slicing and laminating,etc. Form automatic production line with internal mixer or dispersion mixer and double-cone screw automatic feeding sheeting mill or open mill to reach the effect of continuous production operation. The rubber sheet cooling mode can as per customer requirement adopt spray or immersion.The machine can satisfy the requirement during mixing process of rubber sheet cooling,slicing and laminating,etc. Form automatic production line with internal mixer or dispersion mixer and double-cone screw automatic feeding sheeting mill or open mill to reach the effect of continuous production operation. The rubber sheet cooling mode can as per customer requirement adopt spray or immersion.The machine can satisfy the requirement during mixing process of rubber sheet cooling,slicing and laminating,etc. Form automatic production line with internal mixer or dispersion mixer and double-cone screw automatic feeding sheeting mill or open mill to reach the effect of continuous production operation. The rubber sheet cooling mode can as per customer requirement adopt spray or immersion.The machine can satisfy the requirement during mixing process of rubber sheet cooling,slicing and laminating,etc. Form automatic production line with internal mixer or dispersion mixer and double-cone screw automatic feeding sheeting mill or open mill to reach the effect of continuous production operation. The rubber sheet cooling mode can as per customer requirement adopt spray or immersion.

---
