Xjl-250 Rubber Strainer Filter Rubber Extruder Machine for Electricity Cable

US$80,000.00-100,000.00 1 set (MOQ)

Basic Info.

Model NO.
XJL-250 XJL-160 XJL-200 XJL 220 XJL-300
Control Type
PLC
Automatic Grade
Automatic
Power Source
Electric
Type
Rubber Extruder
Screw Diameter
250mm
Screw Material
38crmoala+Nitrogen Treatment+Hard Chroming
Head Number
Two
Head Locking
Hydraulic
Temperature Control
Oil or Steam
Motor
Inverter Motor
Gearbox
Hard Tooth Gear, Self Cooling Self Lubricating
Inverter
ABB or Siemens or FUJI
Max Screw Speed
55r/Min
Motor Power
280kw
Capacity
2100-2600kg/H
Transport Package
PE Film Wraps
Specification
CE, ISO9001
Trademark
LANHANG
Origin
China Jiangsu
HS Code
84778000
Production Capacity
50set/Year

Product Description

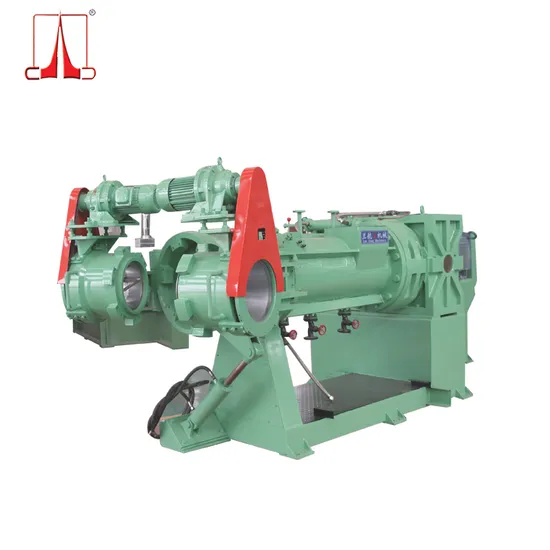

Rubber strainer extruder machine
Application :
Filtration colloidization's rubber material enters the calendar, assures the calendar bowl's security the impurity filtration.
The screw rod uses the special steel, and after nitriding, prolonged wear-resisting. The double die head replace is rapid,
the ease of operation saves time. Is equipped with when the power failure the die head opens the installment automatically,
protects the ratio station security.

Features:
1.Screw made of sapecial steel is with nitrogentreatment,durable.
2. Jacketed type barrel can cooled for cooling the rubbers effectively.
3. Double head strainer to be quickly & easily exchanged.
4. Smoothly running and high output.
5. Equipped with die-head auto opeaning system when electric power is cut of.

Main technical parameter:

Model

XJL-160

XJL-200

XJL-220

XJL-250

XJL-300

Screw diamete(mm)

160

200

220

250

300

(L/D)ratio

14:1

14:1

16:1 or 14:1

18:1

12:1

Max.screw speed(r/min)

60

55

44

33

26

Power of motor(kW)

75kW DC

90kW DC

110kW DC

160kW DC

220kW DC

Capacity(kg/h)

360

800-1000

1800-2000

2100-2600

2300-2800
