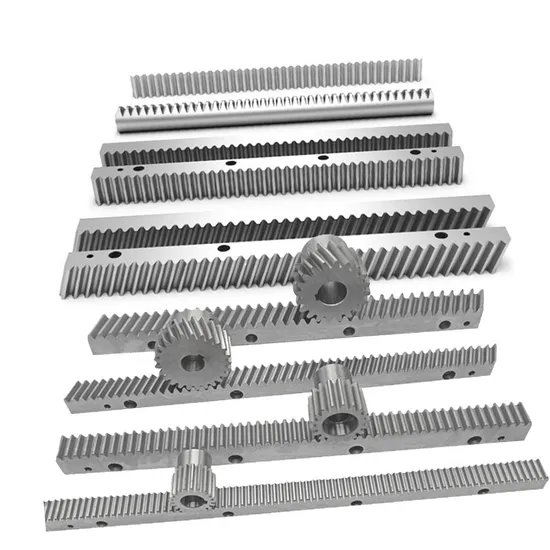

Standard Sizes Steel Gear Rack Helical Gear Set Rack and Aluminum Pinion for Automatic Gate Opener Plastic Atlanta Round Precision Curved CNC Boston Nylon Spur

Product Description

The allowable forces shown in the table are the calculated values according to the assumed usage conditions.
In cases of using a molded flexible rack in an arc shape, proper meshing cannot be obtained as the pitch error and the tooth profile error increases. Be sure and adjust the center distance so that the pinion turns without any problem.
Molded Flexible Racks are not suitable for use when positioning accuracy is required.
To find the dimensional tolerance of these racks, please see the Dimensional Tolerance Table. The overall length tolerance is ±10 mm.

Precision grade	grade 5
Gear teeth	Standard full depth
Pressure angle	20°
Material	SUS303

After Warranty Service	Video technical support
Applicable Industries	Manufacturing Plant
Warranty	1.5 years
Place of Origin	China
China	Zhejiang
Brand Name	EPG
certificate	CE
Material	Metal
Color	Customized
Design	Customized
