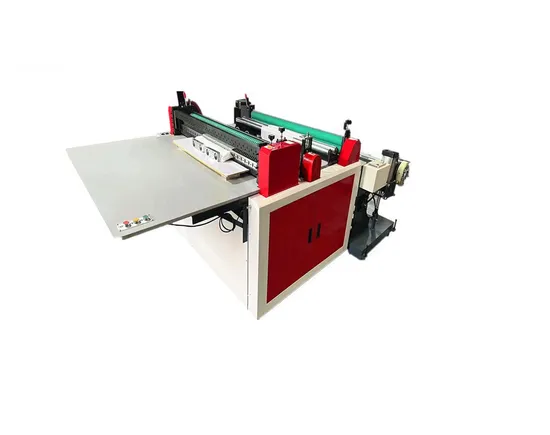

Roll to Sheet Cutting Machine Paper Film Material Cutter Sheeting Machine

Product Description

Product Description This machine is suitable for cutting various types of paper, paper plastic composite materials and other large rolls, and is currently an ideal equipment for high-quality large roll cutting in China. Material weight range: 50-400gsm.
Performance and characteristics:
--Pneumatic feeding
The safety protection cover of the rear feeding clamp prevents safety accidents during operation
--Servo motor
The servo motor has high power and precision in fixed length, achieving stable and long-lasting fixed length output compared to ordinary stepper output. The failure rate is low
--Knife structure
The use of thickened casting structure and the use of smashing knife cutting method have improved the insufficient cutting force of scissor cutting. Avoided knife damage
Detailed Photos

Product Parameters

Model	LR-1000
Max. Unwind Diameter	ø1000mm
Max.Cutting Width	50-950mm
Raw Material Range	50 ~ 100g/m2
Cutting Speed	0-120 cuts/min
Cutting Length	50-1500mm
Vertical Slitting Minimum width	50mm
Slitting Knife	As required
Cutting Precision	±0.2mm
Cutting mode	Under the knife to cut
Tension Control	Magnetic Particle
Control Type	PLC
Power Requirement	380V 50Hz 3.5KW
Weight	800Kg
Overall Size	1900×3550×1500mm

Application
Packaging & Shipping
Company Profile

---
