1500kg Electric Pallet Stacker Truck 1.5 Ton Electric Stacker Truck Forklift

Product Description

Product Description

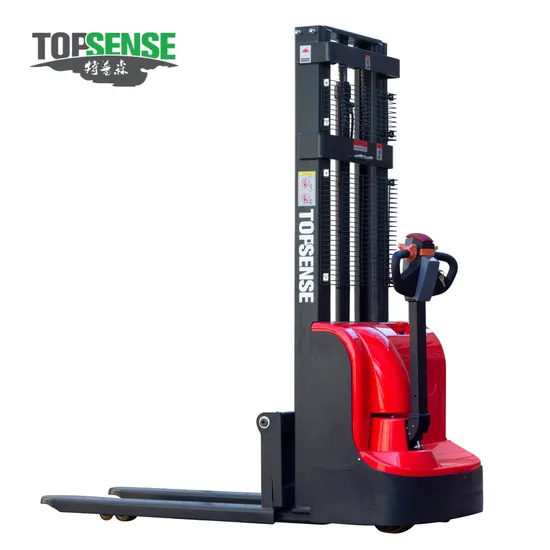

'Topsense' CDD15E/15EC
Power and efficiency at the same time, the forklift accelerates your career!
--1. Comfort, economy, energy saving -- professional matching design of vehicle parts, low energy consumption
--2. Electric lift - fast, efficient, low noise
--3. Intelligent control - regenerative braking, automatic energy recovery, stepless speed regulation, strong power, multiple automatic protection
Detailed Photos
Product Parameters

		CDD15E	CDD15EC
Drive mode		electric	electric
Driving mode		walk	walk
Rated load	kg	1500	1500
Load center	mm	500	500
Wheelbase	mm	1241	1241
Weight (including battery)	kg	550	550
Tire		Polyurethane wheels	Polyurethane wheels
Drive wheel size (diameter*width)	mm	160*50	210*70
Front wheel size	mm	80*70	80*70
Balance size	mm	520	520
Number of wheels (front/rear)		1*+1/4	1*+1/4
Front wheel track	mm	520	520
Rear wheel track	mm	513	513
Height (when fork is at its lowest)	mm	2090/1590/1840/2090/2340	2090/1590/1840/2090/2340
Height (when fork is at its highest)	mm	2090/2570/3070/3570/4070	2090/2570/3070/3570/4070
Lifting height:	mm	1600/2000/2500/3000/3500	1600/2000/2500/3000/3500
Fork height from ground (at its lowest)	mm	<=90	<=90
Handle height from ground (maximum/minimum)	mm	1230/750	1230/750
Vehicle length	mm	1900	1900
Vehicle width	mm	822	822
Fork size	mm	60/170/1150	60/170/1150
Fork outer width	mm	550/680	550/680
Minimum ground clearance	mm	30	30
Right-angle stacking channel width (pallet 1000*1200mm)	mm	2305	2305
Turning radius	mm	1431	1431
Driving speed (full load/empty load)	km/h	3.4/4.3	4/5
Maximum lifting speed without load	mm/s	115	120
Maximum lifting speed with full load	mm/s	75	75
Maximum gradeability (full load/empty load)	%	5/12	3/8
Braking mode		Electromagnetic brake	Electromagnetic brake
Drive motor power	kw	0.8	0.75
Lifting motor power	kw	2.2	2.2
Battery voltage/capacity	v/ah	12v*4/32ah	12v*2/80ah

Product Application Direction
1. Logistics warehousing - electric stackers can be used to improve the storage density and work efficiency of warehouses. It can quickly and accurately lift goods from the ground to the high-rise shelves, reducing the time and labor intensity of manual handling. In addition, electric stackers can also be equipped with different accessories and functions to adapt to different types of cargo, such as pallets, cartons, containers, etc.
2. Manufacturing - electric stackers can be used for material handling and assembly work on production lines. It can quickly transfer raw materials and semi-finished products from one workstation to another, improving production efficiency and product quality. At the same time, electric stackers can also be used in conjunction with other equipment (such as conveyor belts, robots, etc.) to achieve automated production and material management.
3. Retail - electric stackers can be used for goods display and management in supermarkets, shopping malls and other places. It can transport goods from a warehouse or distribution center to a sales area and place them on shelves or display stands. By using electric stackers, businesses can improve the efficiency of the placement of goods and the shopping experience of customers.
In addition, it can also be applied to other fields, such as airport freight, hospital logistics, library management and so on. Its flexibility and efficiency make it one of the indispensable tools in modern logistics and production environments.
Company Profile

Welcome to Shandong Topsense Machinery Co., Ltd
Shandong Topsense Machinery Co., Ltd is a company with import and export rights endorsed by the State Administration of foreign trade and economic cooperation and the General Administration of customs, with aregistered capital of 3.6 milion RMB. Our company is a global enterprise specialized in storage equipment construction machinery equipment manufacturing and service. Our products cover diesel forklifts, electric forklifts, electric pallet truck, electric stackers, telehandler, wheel loaders, backhoe loaders, mini excavator and skid steer loader etc. These are mainly used for farming, warehousing, port, air port, factory workshop etc. And OEM is acceptable. Our company is headquartered in Qingdao, Shandong Province. Lts production base is located in Weifang, Shandong Province. With Qingdao Shibei District lnternational Trade Department, Weifang sales branch. Now our productsare popular selling not only in Chinese domestic market, but also more than 40 countries in the world.The company is close to Qingdao Port and has prosperous trade relations.

Our Advantages
Packaging & Shipping
FAQ

Q1:What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered
patent,we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample
cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

---
