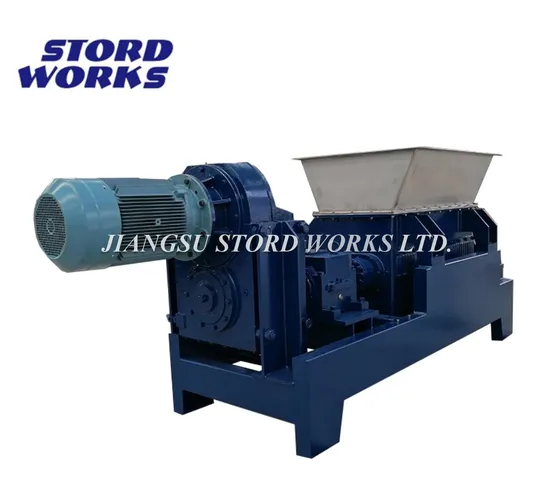

Meat and Bone Crusher with Blades of Different Structures

US$22,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
as per requirement
Processing Object
Animal-Derived Feed
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Warranty
Provided
Capacity(T/H)
Max.5t/H(Max.8t/H, Max.10t/H, Max.12t/H)
Construction Material
Carbon Steel, Stainless Steel
Voltage
220V/380V/440V
Box Dimension
300*600 mm(400*800 mm, 500*1000 mm, 600*1200 mm, 8
Diameter of Blade
180mm; (220mm, 280mm, 350mm, 400mm, 550mm
Screw Speed
10-40 Rpm
Motor Power
11kw (22kw, 37kw, 45kw, 75kw, 90kw)
Core Components
Engine, Motor, Gearbox
Spindle
Single Spindle, Twin-Spindle, Four-Spindle
Blades Materials
9crsi, 6crw2si etc
Transport Package
New Design Bone Crusher Machine: Good Packed by Pl
Specification
as per requirement
Trademark
stordworks
Origin
Jiangsu. China
Production Capacity
20sets/Mounth

Packaging & Delivery

Package Size
380.00cm * 280.00cm * 180.00cm
Package Gross Weight
1000.000kg

Product Description

Product Description
Crusher is used for crushing the whole animal carcasses, and various internal organs and bones from slaughterhouses.

Generally use crusher to reduce the size of the material and then delivery by screw conveyor or vane pump before cooking. The motor model and the speed of the crushing shaft can be adjusted according to the production demand, the operation cost is low.The design of quick repair and replacement parts makes the crusher more efficient. Product Parameters

Model PS-5 PS-8 PS-10 PS-12 PS-15 PS-20
Box dimension(mm) 300*600 400*800 500*1000 600*1200 820*1200 1000*1300
Diameter of blade(mm) Ф180 Ф220 Ф280 Ф350 Ф400 Ф550
Screw speed(r.p.m) 10-40 10-40 10-40 10-40 10-40 10-40
Motor power(kw) 11 22 37 45 75 90
Capacity(t/h) 1-5 5-8 8-10 10-12 12-15 15-20
