Welcome to visit

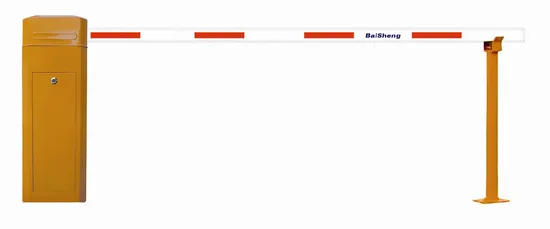

CE Electronic Boom Barrier/Parking System

US$340.00
1-49 Sets
US$300.00
50-99 Sets
US$290.00
100+ Sets

Basic Info.

Model NO.
BS-306
Function
Separation
Post Fixation
Expansion Bolts
Power Supply
220VAC 50Hz
Motor′s Power
90wac 80wdc
Max Length of Boom
6m
Time for up/Down
2s( for 1~3meter), 6s( for 4~6m)
Environment Temperature
-20oc-50oc
Working Invironment
-20~50
Protection Class
IP55
Transport Package
Carton or Wooden
Specification
CE, ISO9001
Trademark
BS(BISEN)/ OEM is possible
Origin
China
HS Code
85012000
Production Capacity
12000 Sets /Month

Product Description


Features:
1.-The traffic barrier is widely used for the facilities of parking, traffic or toll system.
2.-Arms can be chosen from 3 meters to 6 meters.
3.-This type of barrier could match with direct boom( pole), fold boom Or fence boom..
4.-Advanced manual release .Clutch key can be used to open the clutch when electricity is cut off.
5.-All the process is soft without any noise and shaking.
6.-This barrier gate has many input terminals for photocell, Airwave switch, loop detector, back-
up battery(for DC Motor), toll gate system and output terminals for lamp.
7.-Housing color: yellow,red ,blue,orange,white (optional)
8.-Boom arm direction can be chosen leftward to rightward.
9.-Auto warming up,suitable for cold environment.
10-Controlling way :wireless or wiring multiple push button for OPEN,CLOSE,STOP function.
