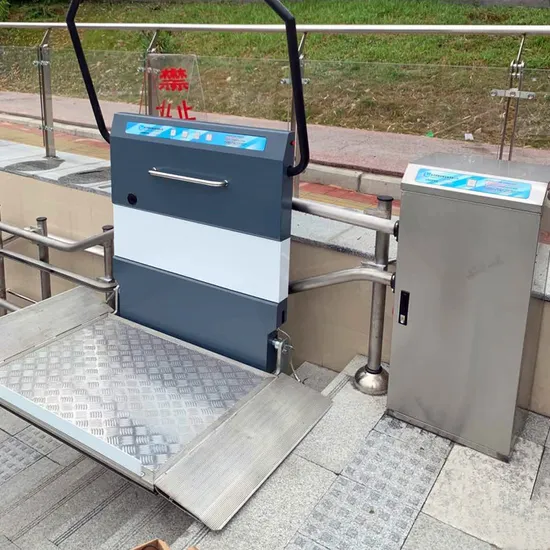

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.
Inclined wheelchair lifts from APLUS can carry a passenger with wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.
| Standard Manned Platform Dimensions | 1100MM×800MM |
| Loading | 250KG |
| Speed | 0~7M/MIN |
| Slow down when leaving or reaching a landing |
| Drive System | 1.5KW-VVVF compact drive system |
| Guide | The independent drive system is integrated with the track, and the guide rail and column are made of stainless steel |
| Power | AC 220/380V 50Hz-60Hz,15A |
| communication | carrier communication |
| Manned platform operating system control | Non-locking constant voltage directional button switch, DC24V, equipped with emergency stop switch |
| Call station operation control | Unlocked constant voltage platform running direction switch; manned platform receiving and releasing constant voltage switch; power lock, DC24V |
| surface coating | Durable electrostatic spray and paint, sea gray paint, stainless steel sanding and standard colors can be freely selected |
| curved safety arm | Fully automatic safety arm mounted 880mm above the platform |
| pedestrian safety warning light | Installed on the front and rear ends of the platform floor, amber light-emitting lamps |
| Overspeed Safety Device | Mounted on the bottom of the rail, with mechanical overspeed sensor and brake, electronically driven circuit breaker |
| Stop at an obstacle | Safety sensor panels on the bottom and ramps of the manned platform can detect obstacles and stop the platform in case of obstacles |
| Manual toggle key | The platform can be lowered manually and the manned platform can be folded in an emergency |
| Drive System | Sheave chain drive system |
| guidance system | Modular track system |
| Control System | PLC |
| Overload protection | Overcurrent Relay Control |
| Guard form | Flip plate (installation on three sides, automatic on both sides) |
| emergency stop | Press the emergency button switch to control the machine operation |
| safety interlock | The platform cannot be used abnormally, and the security protection is not in place and cannot be run. |
| safety touch panel | When the safety touch panel encounters an obstacle during operation, the operation will stop immediately |
| Power off control | When there is no power or failure, manual control to retract the platform |
| safety rocker | cocked when rising |
| Perceptual face and perceptual edge | Bottom, main, and side safety sensors to sense obstacles |
| speed limit control | Intelligent frequency conversion control, start low speed, straight line acceleration, turning deceleration |
| security key | Dedicated key control, dedicated personnel |
| traction method | Sheave chain drive and slotted for upper rail. |
| safety protection system | Independent safety protection system |
| Powertrain | independent |
| operate | Independent operation key to turn on the voltage stabilizer switch in the platform control cabinet and the landing switch of the call station |
By position,
parked position | low |
| Pause button | Pause buttons and pedestrian safety warning lights are provided at each stop of the equipment and on the platform |
| Manual control system | The manned platform can be lowered and folded manually in an emergency |
| alarm system | Equipped with emergency call help button, different sound alarms in different situations |
| Exterior color | Silver/Customer can choose |
| End station indicator | Equipped with running, maintenance and platform running lights |
The inclined wheelchair lifting platform is a barrier-free safety device installed in the corridor system that uses motor traction to move up and down along the track and carry passengers. It consists of drive system, guide rail, sheave chain, mobile platform, etc. It is a special equipment used in the building corridor system for people who are wheelchair or difficult to climb stairs. It is mainly composed of main drive system, auxiliary drive system, main control system and safety system.
