HC-D007 Best X-Ray Equipment/ Reliable X-Ray Machine/ Mobile X-Ray Machine
Feature for HC-D007 Best X-Ray Equipment/ Reliable X-Ray Machine/ Mobile X-Ray Machine
Power Output: 3KW
X-Ray Tube: Fixed anode
Commute Method: Full wave commutation
Tube Voltage : 40~90KV
Tube Current : 50~90KV15mA
50~90KV30mA
40~80KV50mA
Exposure Time : 50~90KV15mA0.1~6.3s
50~90KV30mA0.1~6.3s
40~80KV50mA0.1~1.5s
Power Supply: 220V±10% 60Hz inner-resistance≤1.0Ω 4KVA
C: Wire /Wireless control
20 meters microwave remote control exposure. (Advantage).
It is different from infrared remote control exposure, does not suffer any obstacles in the way.
GENERAL
|
Can be used in ward and emergency treatment room.
|
.X-ray generator is combined
|
Single focus, bridge rectification.
|
.It is precise, safe, reliable and flexible
|
A wireless remote control device (control range≥5 m) is used
|
MAIN TECHNICAL PARAMETER
|
X-ray generator
| Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit.
|
Max rated capability
| Current
| 15mA
| 30mA
| 60mA
| 100mA
|
Voltage
| 90kvp
| 90kvp
| 90kvp
| 80kvp
|
Time
| 6.3s
| 6.3s
| 4.0s
| 3.2s
|
Power supply
| Voltage
| 180~240V
|
Frequency
| 50Hz
|
Power
| not lower than 7kVA
|
Resistance
| not larger than 1Ω
|
Voltage adjustment range of x-ray tube
| 50~90kVp
|
Range of the timer
| 0.08~6.3 s
|
Distance between the focus to the ground
| 700~1780 mm
|
X-ray tube focus transverse rotation
| ±60°
|
Specification of X-ray tube
| XD4 2.9/100 Stationary anode, single focus
|
Transport dimension,Weight
| 123×90×204(cm), NET:190kg/ GROSS:250kg
|

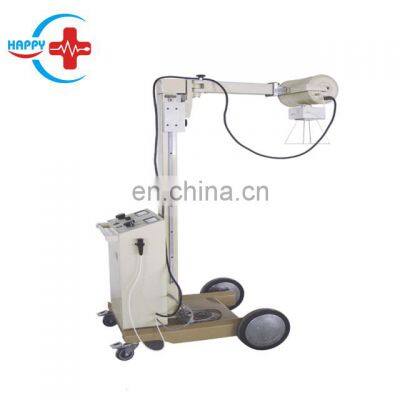

Picture for HC-D007 Best X-Ray Equipment/ Reliable X-Ray Machine/ Mobile X-Ray Machine
More product
HC-A014A Top quality double screen 4D trolley color doppler ultrasound machine with good price
HC-A016V Veterinary LED full digital Vet ultrasound scanner/ Vet ultrasound machine
Packaging & Shipping
Our Services
Company Information
FAQ
1. How to place order of HC-D007 Best X-Ray Equipment/ Reliable X-Ray Machine/ Mobile X-Ray Machine ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-D007 Best X-Ray Equipment/ Reliable X-Ray Machine/ Mobile X-Ray Machine product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-D007 Ray Machine Sale Accessories Veterinary Medical Gray Power Instrument Color Class Origin Warranty , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For
HC-D007 Best X-Ray Equipment/ Reliable X-Ray Machine/ Mobile X-Ray Machine , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For
HC-D007 Best X-Ray Equipment/ Reliable X-Ray Machine/ Mobile X-Ray Machine , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
