17am Klixon Bimetal Thermal Temperature Protector Thermostat Switch

Product Description

High quality supplier of thermostat in China Ningbo Youxin Electric Co., Ltd. is a Taiwan-funded enterprise established in Yuyao, Zhejiang. The company has independent development and design capabilities, production and sales: thermostats, temperature control switches, motor protectors, automotive and marine overcurrent circuit breakers and other types of controls element.
The various series of products produced by the company are mainly used in medical hot pads, motor motors, small household appliances and car seat heating modules that require overheat protection, and overcurrent protection devices on automobiles and ships. We have more than 30 years of professional R&D experience and production team. We use advanced automation equipment from Taiwan, Japan, Europe and the United States to produce. At the same time, we have reliable quality control technology to ensure that each product is 100% fully inspected and has zero defects. Shipping quality is our goal. In addition, the products have passed UL, CE, CQC, CB, PSE, TUV and other certifications.
The company adheres to the service tenet of "Quality First, Continuous Innovation, Credit First, and Sincere Treatment", and is willing to provide our customers with perfect and fast quality services! Looking forward to working with you to move forward and create a better tomorrow!

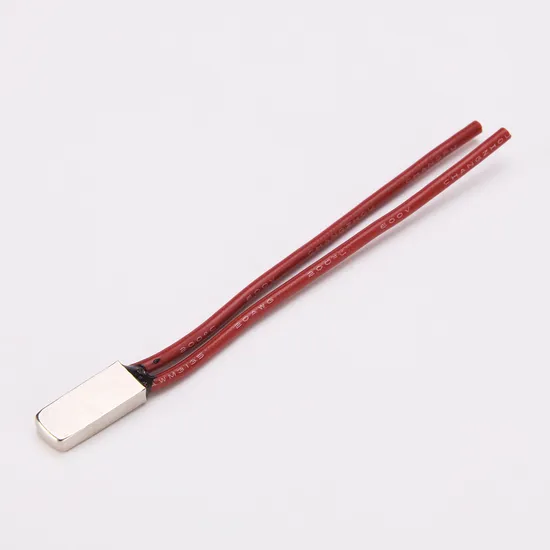

VA1(S) is a bi-metal constructed thermostat/thermal protector with low resistor circuit and gold diffused point devise inside, and sealed in a plastic case for water-proof and dust-proof. Its compact dimensions and constant temperature control design makes it exceptionally suitable for electric blanket, heating pad and household appliance.
Electrical Characteristics
AC120 V / 5 A
DC 24 V / 5 A
Temperature Range and Tolerance:
UL and C-UL certification ( No.: E246870 ).
Enable to bear 100, 000 life proof and 1000 hours working without break. UL130 testing approval.
RoHS ( 2002/95/EC Directive ) and REACH correspondence.

Thermostat Specifications
VA Series is a creep action thermostat/ thermal protector with conductive bimetal construction.Also, low internal resistance and gold diffused contacts are available. Owing to its heat preservation function and miniature design the thermostat can mainly be applied to heating pads, pet pads and small household appliances.
Key Freatures:	Use conductive bimetal material to make sure stable currency and the low voltage/current requirement It can be switch turn on / off gradually in order to maintain a constant & stable temperature. Preset down the temperature range before delivery , can ' t be adjustable . Terminal end can be connected with lead wire directly. Available to normally open and normally closed Wiring or fuse process are available.
Rating:	VA1: AC120 V / 2A ; VA2: AC120 V / 5 A
Temperature Range And Tolerance:	Temperature range from 5 ºC - 200ºC is available. Standard tolerance is ± 5 ºC . However, tolerance within ± 1 ºCto ± 8 ºC is also available upon request.
Compliance:	UL and C-UL certification ( No. :E246870 ) . Enable to bear 100,000 life proof and 1000 hours working without break. UL130 testingapproval. RoHS ( 2002/95/EC Directive ) correspondence.
Model Code
Type	1: VA1 A1: VAA1 A1L: VAA1L 1S: VA1S
Temperature	005-200: 005-200 ºC
Tolerance	01 - 08: ±1ºC to ±8ºC
Year of Calibration	A: 2003, B: 2004 ,…, Z:2028
Week of Calibration	1: 1st week of the year, 2: 2nd week of the year,… , 52nd of the year

1.Why choose us?
-OEM/ODM Accept.
-Specialized in this line for 35 years.
-small order or sample order can be accepted.
-Factory supply directly, cheap price quality assurance.
-Baile for your choice.
-Professional after -sale service.
2.Our Payment & Logistics?
-Payment terms:TT/West Union/L/C PayPal.
-Shipping terms: DHL, UPS, FEDEX, TNT, EMS.
-Sample order delivered within 24 hours , order lead time within 3 days.
-Sample available: Yes.
FOB Port: Shanghai,Guangzhou,Ningbo
3.What can you get from us?
-.Excellent products (unique design, strict quality control ).
-.Great service(OEM,ODM, after-sales services, fast delivery).
-.Professional business consultation.
4.Payment method ?
-Paypal, T/T, Western Union, MoneyGram , or other method.Ship worldwide by sea,by air or by express like
DHL, UPS, and so on.

---
