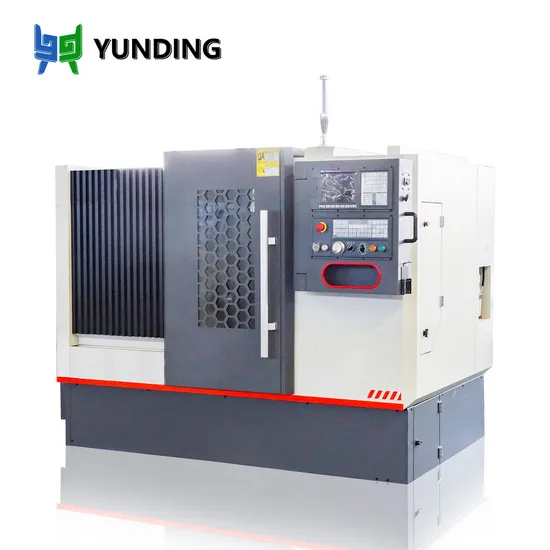

Tck56 Y Axis Axle Tornos High Speed Live Driven Tool Turning Center Turret Hydraulic Chuck Tck50A Linear Guideway Metal Inclined Slant Bed CNC Lathe

Product Description

High Precision Speed Live Driven Tool Milling Turning Center Turret Hydraulic Chuck Tck50A Linear Guideway Metal Inclined Slant Bed CNC Lathe
Product features:Highest accuracy Taiwan linear guide waysHigher speed spindle unit ,optional homemade spindleHigher rigidity cast ironIntegrated automatic lubricationOne-piece casting slant bed cnc latheApplication :The machine is suitable for automobile, motorcycle, electronics, aerospace,oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.

Main technical specifications	Specification	Unit	TCK50A
	Max.swing over bed	mm	500
	Max.swing over cross slide	mm	260
	Max. Processing length	mm	350/500/800
	Max. Bar capacity	mm	55/75
	Max.processing diameter of plate type of workpiece	mm	400/320
	Spindle nose type		A2-6/8
	Spindle bore	mm	66,66/86
	Spindle speed range	r/min	0-3000
	Main motor power	kw	11/15
	Chuck form		Hydraulic chuck
	Chuck size	inch	11/12
	X axis rapid traverse	M/min	24
	Z axis rapid traverse	M/min	24
	X axis servo motor torque	N.m	7.5/10
	Z axis servo motor torque	N.m	7.5/10
	X axis travel	mm	240
	Z axis travel	mm	400/540/900
	Guide rail type		linear rail
	Tool post type		Horizontal 8/12 station
	Tool shank size	mm	25x25/dia.32
	Tailstock type		hydraulic
	Tailstock quill dia.	mm	70/88
	Tailstock quill travel	mm	80
	Tailstock quill taper		MT5
	Total rated power	kw	14/18
	Total rated current	A	30
	Machine weight	kg	3200/3600/4500
	Machine dimension	mm	2700/2700/3300x2000x2000

Product Description
we are the most professional in making slant bed cnc lathe

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
