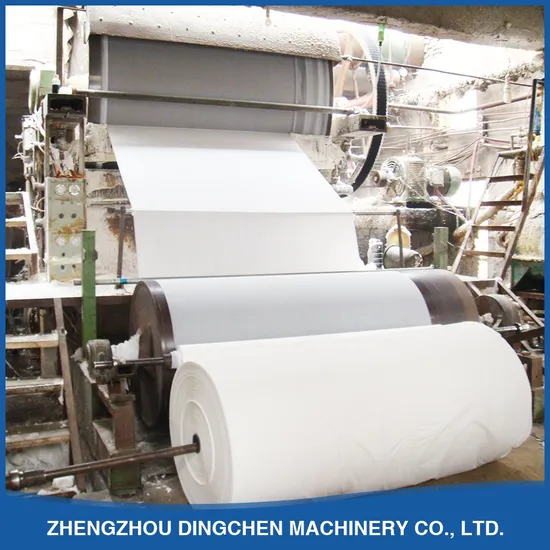

Toilet Roll Paper Making Machine (Dingchen-1880mm)

Product Description

Toilet Roll Paper Making Machine (Dingchen-1880mm)
Perfect service:
1.technical consultation
2.Plant design
3.installation and test run
4.training engineers and workers
5.good and long time after-sale service
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)
1880mm Tissue Paper Making Solution for Capacity 5 - 6 Tons/Day
I.Technical parameter

1. Raw material	wood pulp, recycled paper
2. Output paper	High quality tissue paper
3. Output paper weight	15-40g/m2
4. Capacity	5-6 tons per day
5. Cylinder mold width	2300mm
6. Net paper width	1800mm;
7. Working speed	70-150m/min
8. Designing speed	200m/min
9. Rail gauge	2800mm
10. Drive way	Alternating current frequency converter speed control, sectional drive.

II. The main structure with spec
1 . Cylinder mold part
1 set of φ1500mm×2300mm×2800mm stainless steel cylinder mold, 1 set of 450mm×2300mm×2800mm couch roll, coated by rubber, rubber shore hardness 38ºC±2.
2. Dryer part
1 set of 2500mm×2300mm×2800mm dryer drum, 1 set of 500mm×2300mm×2800mm touch roll, rubber shore hardness 90ºC±2. Pneumatic pressure device. There is double-layer dryer hood.
3. Winding part
1 set of 1000mm×2300mm×2800mm winding cylinder.
4. Rewinding and cutting part
1 set of 1800 rewinding machine with embossing and perforating.
1 set of tissue paper cutting machine.
Consumption for producting 1t toilet paper

Raw material	water(T)	electricity(Kwh)	NaOH Caustic soda	deinking agent	H2O2 hydrogenperoxide	bleaching agent	(softener)
Waste paepr 1.2T	20	200-250	5kgs	2.5kgs	20kgs	2kgs	1kgs
Wood Pulp 1.1T	20	200-250	------	--------	---------	1kgs	1kgs
Boiler fuel: Oil: 150 kgs or Coal: 0.5t or Gas: 167m3

Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.

Packaging & Shipping
Our Services

FAQ

---
