Product Description
Product Description

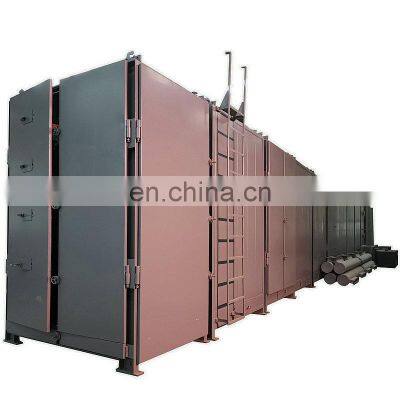

Industrial drying oven mesh band dryer for coal briquette drying hot saleProduction description The riquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line. Working principleMesh belt type drying machine main principle is the material evenly tiled on the mesh belt, is driven by the drive device in the dryer moving back and forth, hot air in materials and the cross flow, water vapour from the wet discharging hole in discharge, so as to achieve the purpose of drying. Network with 12-60 to wire mesh belt, the body length by a combination of the standard section, in order to save space, the drying mechanism into multi-layer, common has two room three and two-room five layers, length 6-40m, effective width 0.6-3.0m.The material has the nose to enter slowly through the drying for drying, net belt line speed depending on the type of material and water content. Air flow to the use of negative pressure, porous air, to ensure the effective drying area, wind speed distribution uniformity, improve the drying effect. In order to get the best drying effect and the appropriate output, the water content of the material, the line speed of the net belt, the air volume and the air temperature must be the appropriate, reasonable and organic combination.Technical parameters ModelDW-1.2-8DW-1.2-10DW-1.6-8DW-1.6-10DW-2-8DW-2-10DW-2-20Quantity of unit45454510Width of belt(m)1.21.62Length of dry section(m)81081081020Operation temperature(oC)50-140Steam pressure(MPa)0.2-0.8Steam consumption (kg/h)120-300150-375150-400180-500180-500225-600450-1200Drying time (h)0.2-1.21.25-1.50.2-1.20.25-1.50.2-1.20.25-1.50.5-3Drying capacity(kg water/h)60-16080-20085-220100-260100-260120-300240-600Total power (kw)11.413.614.618.719.724.551 Overall sizeL(m)9.5611.569.5611.569.5611.5621.56W(m)1.491.491.91.92.322.322.32H(m)2.32.32.42.42.52.52.5 Packaging & Shipping CaseCompany InformationFAQWhat kind of material can be dried by mesh belt dryer?Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.What kind of fuel can be used with the mesh belt dryer?Answer: Diesel, natural gas, coal, wood chips and other kind of fuel.What's the drying temperature of the mesh belt dryer?Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.How long will the briquettes stay in the mesh belt dryer?Answer:Normally the drying time will be about 50-120 minutes.Is the belt speed adjustable?Answer: Yes, the belt speed is adjustable to make sure it can dry material with different moisture.
>>
