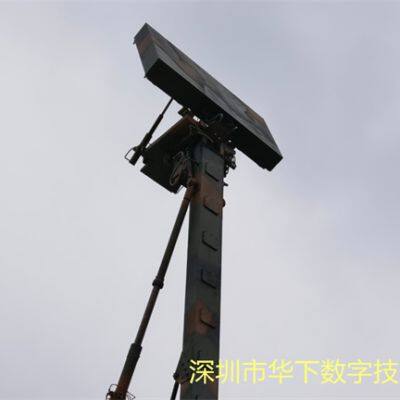

Radar scanning monitoring system Border coastal defense surface vessel surveillance

Product Details

Product Description

Product Description
Brand: Hua Xia
Import or not: No
Support infrared: Yes
Installation environment: outdoor
Voltage: AC220VV
Power: 200WW
Weight: 120kgkg
Product features: detector
Place of Origin: China
Speed: 360 degrees/second
Line: Network
Image quality: HD
Warranty: 1 year
Interface: RJ45
Type: Radar
Model: 054
Radar system
Linear frequency modulation continuous wave radar system
Detection distance
200m~10km (for natural person vehicles)
200-50km (for ships)
measurement accuracy
Azimuth measurement accuracy (rms) ≤ 1 °
Distance measurement accuracy (rms) ≤ 4m
Detection range
Azimuth angle: 20 °
Elevation beam angle: 20 °
Detectable target speed
(0.5-60) m/s
Radar weight
Radar body: 10kg
Continuous working hours
seven × 24 hours
Working status of mains power
Multi objective processing capability
TWS tracking: 10 batches
Loading methods: fixed and vehicle mounted
Reliability and maintainability
MTBCF: ≥ 20000 hours;
MTTR: ≤ 0.5 hours
Interface: Ethernet
Environmental adaptability
Working temperature: -25 ℃~+55 ℃;
Storage temperature: -25 ℃~+65 ℃.
Humidity: ≥ (95 ± 3)% under+35 ℃ conditions;
Rainproof ability: moderate to heavy rain;
Prevent dust and salt spray;

---
