Advanced Auto Parts Servo Molding Equipment

Product Description

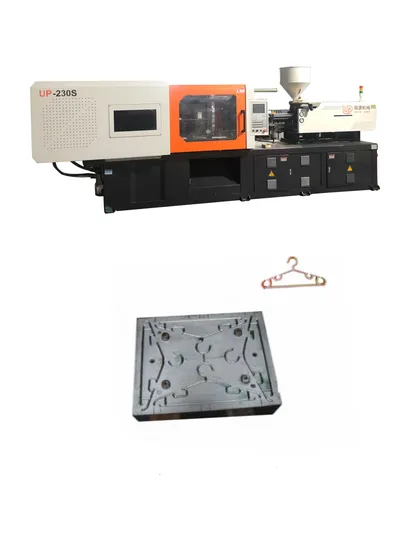

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
Our China servo injection molding machine offers advanced features to enhance your manufacturing process:
Modulus of Capacitance: Ensures precise positioning, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar.
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Features code mold hole and slot size for efficient mold creation.
Ejection Mechanism: Provides ejection point position, ejector rod diameter, ejection force, and stroke for seamless mold ejection.
Mold Opening Stroke: Offers precise mold opening stroke and maximum opening distance for accurate production.
Experience the reliability and precision of our standard injection molding machine, designed to meet your manufacturing needs.

Technical Parameters	Model UP-230T
Injection Unit	A	B	C
Screw diameter (mm)	50	55	60
Shot Volume (cm3)	461	558	664
Injection weight (g)	415	502	598
injection pressure (Mpa)	169	142	121
Screw speed (rmp)	155
Clamping Unit
Clamping force (KN)	2300
Open stroke (mm)	475
Max Mold height (mm)	550
Min Mold height (mm)	220
Space between tie bars(mm)	530*530
Ejector force (KN)	70
Ejector stroke (mm)	135
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	22(21.2)
Heating power (KW)	14.2
Machine dimension (M)	5.8*1.55*2.15
Machine weight (T)	6.3
Oiltank cubage (L)	350

---
