Product Description
Product Description

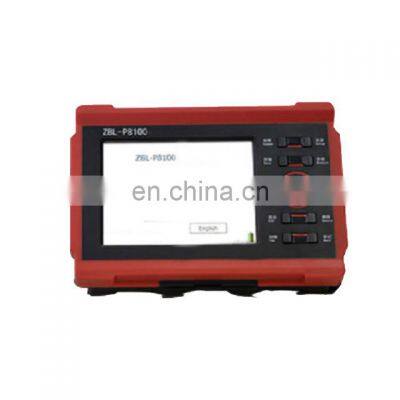

Product DescriptionZBL-P8100 foundation pile Integrity dynamics Tester detector A/D data collectionZBL-P8100 foundation pile Integrity dynamics Tester detector A/D data collection is used to assess the integrality of concrete pile and identify the extent and location of the pile detect by using the reflected wave method.It can be used for testing perfusion pile and hammer pile and also for testing the exposed top surface of constructions such pillars.ZBL-P8100 foundation pile Integrity dynamics Tester detector A/D data collection provided with 2 channels of data acquisition and can acquire data from an accelerometer or an instrumented hammer or from two accelerometers.1.High fidelity system design, to ensure that the original waveform distortion2.True 24 bi A/D data acquisition, the rest waveform is more real, to avoid the noise and signal distortion caused by large floating point amplification3.1MHz high speed data acquisition, the minimum sampling time resolution of 1μs,can provide more useful information, more conducive to the discovery of shallow defects; 4.Double channel design, allows use the special detection method5. A new processing method of wavelet analysis, can be more accurate in complex situations of pile integrity judgement6. Double injection molding, beautiful appearance, small volume, light weight;7. Waterproof casing, anti shock design, adapt to the harsh environment8.Semi transparent, high brightness, TFT color LCD screen, more clearly in the sunZBL-P8100 foundation pile Integrity dynamics Tester detector A/D data collectionDetailed ImagesModelZBL-P8100 foundation pile Integrity dynamics Tester detector A/D data collectionControl ModeA8 Embedded PlatformScreen5.7inch, High Brightness, TFT color LCD screenData Storage≥4GBOperation ModeKey + touch screenSentinel Magnify(time)1,2,5,10,20,50,100 adjustableA/D resoulution(bit)A/D resoulution(bit)Sampling time intervals(μS)1~64000 adjustableMax length of sampling4096TriggerSignal triggerNoise voltage of the system(mV)≤1Dynarnic Range(dB)≥184Amplifier frequency range(Hz)10~10KTime value error4096Time resolving power(us)≤10%Gain Error(dB)≤1% Work time(h)>8Number of channels2Interference between the channels≤1%Transducer/Probe Sensitivity(Acceleration mode) (mv/g)≥100Frequency range of Probe(Acceleration probe) (Hz)0.5~9000PortDouble USBWi-FiYesPower supplyInternal:Built-in BatteryExternal: 220VAC/DCOperational EnvironmentTemperature(℃): -10~+50Humidity (RH) :<90%Packing & DeliveryRelated productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177 Skype: live:7ffcb0f91149cec8E-mail:commercial@tmeasurement.comweb:ZBL-P8100 foundation pile Integrity dynamics Tester detector A/D data collection
>>
