Stainless Steel IP67 Monitor Intel Celeron J4125 All in One Panel PC for Aseptic Cleanroom Applications

Product Description

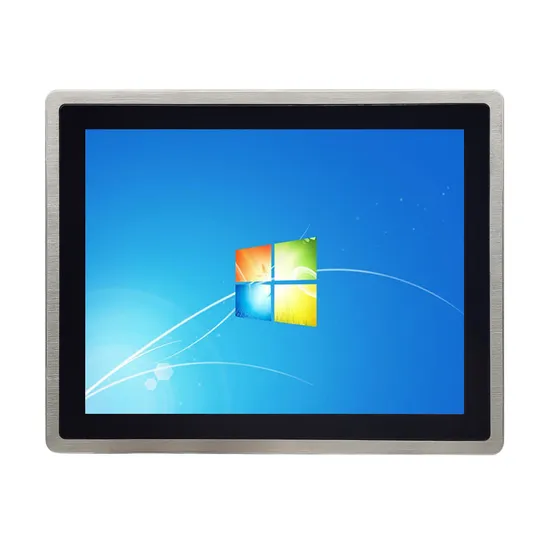

Experience unparalleled durability and performance with our 12.1-inch multi-point PCAP touch Panel PC, featuring a full IP67 sealed stainless steel 304 enclosure.
Main Products
Feedback
Product Description
Features:
1.Complete IP67 protectionwith a sealed stainless steel 304 enclosure, offering a sleek true flat panel design with rounded corners for added safety.
2.Equipped with an air valveto maintain air pressure balance both inside and outside, preventing fogging.
3. Industrial-grade LCD panel providing a wide viewing angle, high brightness, and true color fidelity.
4. Incorporatesmulti-point PCAPtouch technology, delivering high sensitivity and rapid response. The panel is protected by 2mm tempered glass for enhanced vandalproof security.
5.Innovative EETIwaterproof solution ensures the touch panel functions flawlessly even with water droplets on the screen.
6. Anti-glare features reduce ambient reflections, enhancing screen clarity.
7.Optical bondingtechnology prevents internal condensation and fogging while increasing screen transmittance.
8.Supports wide voltage ranges of DC9~36Vensuring versatile power compatibility.
9. Rounded corner guards designed to minimize safety hazards.
10. High-performance, fanless motherboard designed for 24/7 continuous operation.

PC
CPU	Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless
	Intel® Core™ i5-10210U, 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 4.2 GHz, 6MB Cache, Fanless
	Intel® Core™ i7-10510U, 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.9 GHz, 8MB Cache, Fanless
Memory	4G, 8G, 16GB 32GB DDR4 optional
Capacity	128GB, 256GB, 512GB,1TB optional
Network	Onboard Realtek RTL 8111E Gigabit Ethernet controller
I/O Interface	3*USB+1*LAN+1*RS232+1*DC
Operation System	Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size	12"
Resolution	1024*768
Aspect ratio	4:3
Support Color	16.7M colors
Brightness (cd/m²)	1000 nits
Contrast ratio	1000:1
View angle	85/85/85/85 (R/L/U/D)
Touch panel
Touchscreen Type	10 point capacitive touch
Touch Interface	USB (RS232 optional)
Touch response time	<8ms
Luminousness	90%
Surface Hardness	7H
Working Life	>50 million times
Touch options	( 5 wire resistive touch optional)
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	9~36V
Power consumption	≤45W
Enclosure
Material	stainless steel case
Color	Silver
IP-grade	Full IP65 waterproof
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Other
Accessories	Power adapter, waterproof RS232/LAN/USB cable, power cord
Certificates	CE, FCC, RoHs
Warranty	1 years warranty
