L Shape Paper Edge Protector Production Machine

Product Description

SANPPL-120D series paper egde protector production line

Max.speed is 30m/min.SANPPL-120DL is for L profile paper edge protector production.Through changing tools,it can produce U profile protector and Flat board.SANPPL-120DLU or SANPPL-120DLF double purpose machine and SANPPL-120DLUF triple purpose machine can produce two and three types protector without changing tools.

Specification:

Size of protector	25-100mm
Max. speed	30m/min
Max.quantity of layer	13 layer including1layer surface paper
Applicable surface paper	175-250g kraft paper
Applicable inner paper	360-600g bobbin fiber paper
Overall dimension	24.5*1.8*1.9m highest point for added hoist is 2.9m
Total weight	4.5T
Total power	9.5KW
Compressed air supply	0.6Mpa,0.2m³/min

Main Features:
Composite paper stands hoist can be added
Double surface gluing system. Quantify the glue automatically.
Produce different profile protectors through changing moulds.
Pneumatic press system, easy to change moulds.
Touch screen and human-computer interface of servo system, the operation is more personalization, the operation for adjust air cylinder is more convenience.
Automatic to alarm, malfunction, easy to adjust and maintenance.
Hydraulic cutting system, Double heads. Maximum frequency is 80times/minutes.

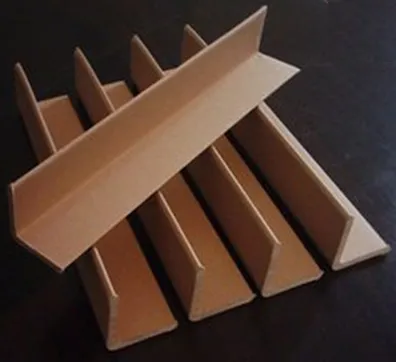

Products:





Our Service:
⇒One year guarantee for whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒Use- friendly English for operation system.
Packing & Delivery:
Packaging Details:Film+ honeycomb board packing.
Delivery Detail:Shipped in 90 days after payment.


THE PACKING IS SEAWORTHY AND SAFE.
