Product Details
Product Description
Product Description

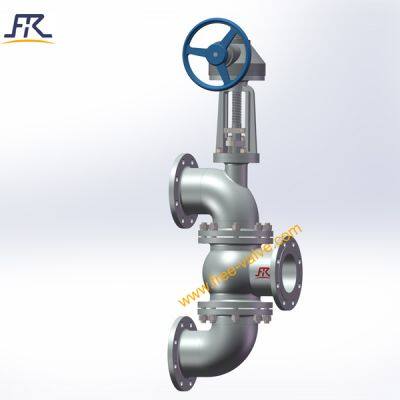

Worm Gear three-way reversing slurry valve is an inverted process valve developed according to the alumina process, which adopts the design principle of superimposed multi-function valve, and is designed as a one inlet and two outlets structure. Slurry diversion and conduction is realized by changing valve stem structural and seal of upper and lower valve body .
When the valve disc is closed downward, the lower seal of the valve is closed, and the slurry enters the upper outlet through the valve cavity to realize the reverse process; While the disc is lifted upwards, the upper seal of the valve is closed, and the slurry enters the lower outlet through the valve cavity to realize the reverse process. So the speed of the alumina dissolution process is greatly improved, more over a lot of production costs is saved for users.
Features
1. The valve is designed as one inlet and two outlets structure, so the inlet and outlet flow channels have switching functions, and the two flow channels can be opened and closed alternately as needed;
2. Short stroke, fast and convenient opening and closing;
3. Small flow resistance and less medium pressure loss;
4. The sealing surface material adopts WC alloy and other types of cemented carbide, which has high hardness, erosion resistance and long service life;
5. The structure of inlet and outlet port can be designed as parallel, vertical or inclined;
6. Valve driving model :worm gear .
Technical Specification:
Flange connection:ASME B16.5,GB/T9113
Design standard:ASME B16.34,GB/T12224
Pressure Range:Class150~Class600
Size Range:DN50~DN 500, NPS2~NPS20
Material:Carbon steel, stainless steel
Connection type:Flange
Working Temperature:≤425℃
Operating Type:Worm Gear
Sealing surface material:Alloy ,Ceramic
Pressure test:GB/T13927, API598
Application
Worm gear three-way valve slurry valve is installed in front or behind of the tank of alumina production .As the valve is an integral assembly valve, it realizes the dual or multi-purpose of one valve, which greatly optimize the past aluminum oxide plant reverse process installation structure, and also facilitates the mutual cooperation and conversion process of the inverted process system. The valve is widely used in alumina, metallurgy and other industries with slurry medium .
Model:FRJ543Y-10K DN200
Price:100-2000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:Free_Valve
Email:marketing@free-valve.com
Skype:marketing@free-valve.com
What’s App:+8613460250295
Mobile:+13460250295
>>
