High-Grade Computer Rooms 600*600mm Aluminum Floor Raised Floor Tiles

Product Description

Product Description
The aluminum raised floor is made of die casting aluminum alloy ingot (ADC12). Aluminum
solid panel is the standard type of aluminum raised floor, there is no holes on top, top surface can be covered with anti static HPL, conductive PVC tile or other coverings. Panels are interchangable with perforated panels and grating panels.

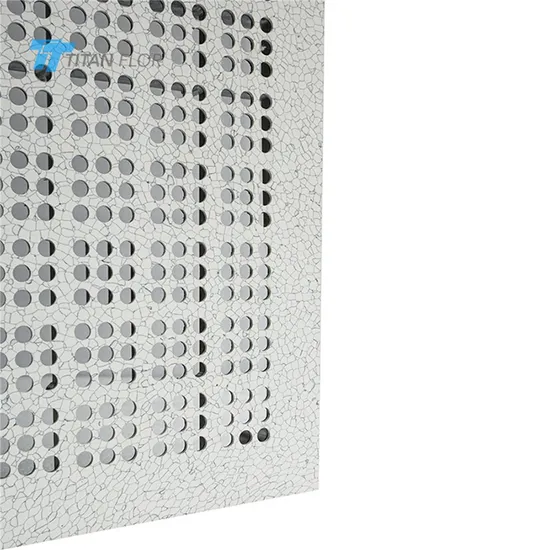

Aluminum perforated panel is reprocessed on the basis of solid panel, it has a ventilation rate range of 17%-43%. Used in conjunction with the damper, the ventilation rate can be adjusted freely. Perforated panels can be installed and interchanged with solid panels. Aluminum grating panel can achieve a large ventilation rate as high as 55%, panels are interchangable with solid panels and perforated panels. Whole panel can be painted with conductive epoxy or nickel chrome coating, which has good resistance to corrosion and wear resistance. Aluminum window panel is reprocessed on the basis of solid panel, panels are interchangable with solid panels. This special panel allows person to check and monitor the situation beneath the raised floor. Understructure Technical Parameters

	Concentrated Load (Deflection≤2.0mm)	Ultimate Load	Uniform Load (Deflection≤1.0mm)	Rolling Load
AL300	300kgf/6.45cm2	600kgf/6.45cm2	800kgf/m2	100kgf
AL500	500kgf/6.45cm2	1000kgf/6.45cm2	1250kgf/m2	150kgf
AL700	700kgf/6.45cm2	1400kgf/6.45cm2	1700kgf/m2	200kgf
AL1000	1000kgf/6.45cm2	2000kgf/6.45cm2	2000kgf/m2	300kgf
AL1200	1200kgf/6.45cm2	2400kgf/6.45cm2	2200kgf/m2	350kgf
AL1500	1500kgf/6.45cm2	3000kgf/6.45cm2	2500kgf/m2	400kgf

Application
Aluminum raised floors can be used in the following fields: microelectronics industry (wafer plant, TFT/LCD, packaging and testing, printed circuit boards), semiconductor industry, flat panel display industry, optoelectronics, life science industry, precision engineering and ultra-clean environmental electronics industry.
Installation Instructions
Our Advantages
Packaging & Shipping
1. Panels are packed on pallets, pedestals are packed in cartons/pallets2. One 20ft container can load 389-486square meters panels with accessories

Exhibition


FAQ
1.How can we guarantee quality?
Each step is strictly controlled by the QC team to make sure all our products turn out
great, we apply 5 years warranty for all our product. 2.Do you offer free samples? Yes, free samples are available. There are cut corner panel samples and full panel samples for your different purposes. 3.What is your delivery time? We always have more than 20,000 square meters stock for popular specifications raised
floor. For special specifications without stock, our production capacity is 5,000-10,000 square meters per week. 4.Do you supply installation support? For countries and area we have partners, we can offer installation support. Otherwise, we
support online guidance. 5.What are your payment terms? General term is T/T 30% deposit, balance 70% paid against copy of B/L. We also accept L/C, Trade Assurance, Paypal, Western Union.

---
