Steel Wire Rope Metal Matmanufacturer High-Quality High-Precision Horizontal Tensile Testing Machine

Product Description

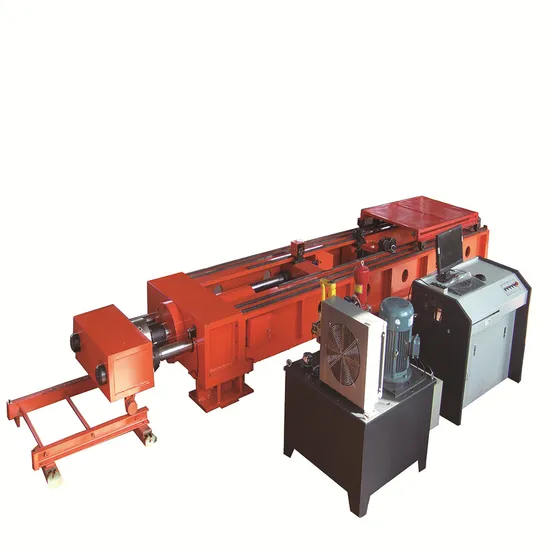

Steel Wire Rope Horizontal Tensile Testing Machine
1. Application
Horizontal Tension Test Beds, Tensile Testing Machine, is professional test machines for steel wire,wire ropes, slings, cables and other lifting tools etc.
2.Technical Parameters

Parameters Model	WAL-1000KN	WAL-2000KN	WAL-5000KN
Max. Load	100T	200T	500T
Max. Load	220,000lbs	450,000lbs	1,100,000lbs
Accuracy	0.5 class/1 class
Load range	1%-100%FS (no subsection of full travel)
Testing Space	3000mm/5000mm/10000mm/can be extended
Space adjustment	Bolts with each 500mm as per section
Resolution of deformation	Max. Deformation 1/300000
Piston no-loading speed	200mm/min
Piston up-loading speed	0.1-100mm/min

3. Details Images
FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C

---
