| US$42,000.00 | 1 Set (MOQ) |

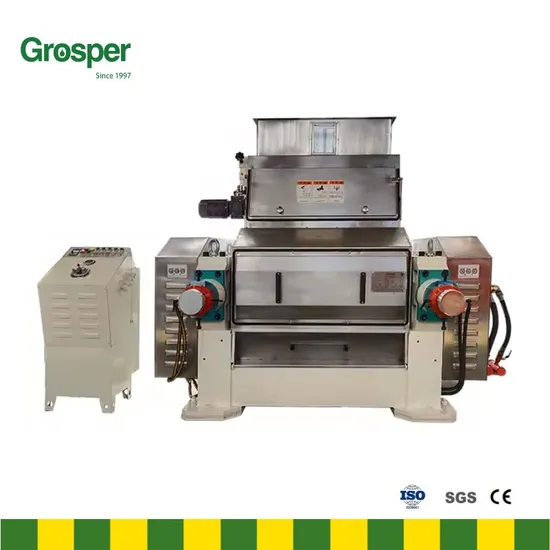

| FG6100FWC Grain Flaker Technical Parameter | |||||
| 1 | Equipment name | FG6100FWC Flaker | 2 | Model | FG6100FWC |
| 3 | Chinese Trade Mark | Liaohai Pearl | 4 | Abroad Trade Mark | Grosper |
| 5 | Capacity(T/D) | 60 | 6 | Raw material | Grain |
| 7 | Roller size(mm) | φ600*1000 | 8 | Chill depth(mm) | 25-30mm |
| 9 | Roller materials | High Ni Cr Mo alloy | 10 | Chill hardness (hs) | 75±3 |
| 11 | Flake thickness(mm) | 0.25-0.35 | 12 | Roller speed(rpm) | 388 |
| 13 | Total motor power(kW) | 46.05 | 14 | Drive motor power(kW) | 22*2 |
| 15 | Reducer power(kW) | 0.55 | 16 | Weight(≈t) | 6.1 |
| 17 | Dimensions(mm) | 2200*2100*1920 | 18 | Bearing type | 23228CCK/W33 |
| 19 | Pulley type | 6SPC560-5050-115,6SPC224-3535-55 | |||
