Plent High Precision Multipurpose Hand-Crank Reels for Dust Cotrol

Product Description

https://nbpmco.en.made-in-china.com/product-group/iotQAyqHszWx/Hose-Reel-catalog-1.html
Product Description

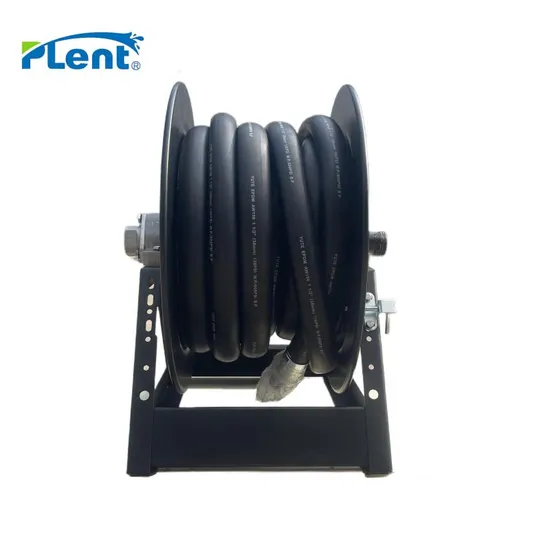

Manual Hand Crank Hose Reel is made with heavy duty grade steel construction, rolled edges and ribbed discs for strength and safety. It features a direct hand crank manually rewind your hose, cord, or cable. These reels feature a smooth, trouble-free retraction with maximum operator comfort, thanks in part to the smooth & round handles.
Our Advantages
1. Material: Heavy duty steel contruction for the main body, Stainless steel swivel to avoid rust.
2. Control type: Manual hand crank control
3. Inlet: 90° ball bearing swivel joint with 1-1/2" female NPT/BSP threads.
4. Outlet: Flanged riser with 1-1/2" female NPT/BSP threads
5. Hose barb is optional for outlet.
6. Max working pressure is 1.6MPA(200 PSI).
7. Customized size and color are available.
8. Package: They can be shipped by parts to save freight cost effectively.
9. Smooth, trouble-free retraction with maximum operator comfort.
Product Parameters 1. Height: 25''
2. Over width: 24-1/8''
3. Depth: 24''
4. Hose Size: 1.5''*50'
5. Weight: 76 ibs
Outline Drawing:
Explosive Drawing:
Detailed Photos
CRATE AND PALLET PACKAGE
More photos:
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free if the cost is below USD20 with freight on your cost.
Q: How long is your delivery time?
A: Generally it is 5 days if the goods are in stock. Or it is 15 days if the goods are not in stock, it is according to quantity.
Q. what is your payment term?
A: T/T 30% payment in advance, balance to be paid prior shipment.
Q: what is your main market?
A: ,Western Europe,North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia.
Q: Can I have my own customized product?
A: Yes, we can supply logo Print and package desiged based in our MOQ.

---
