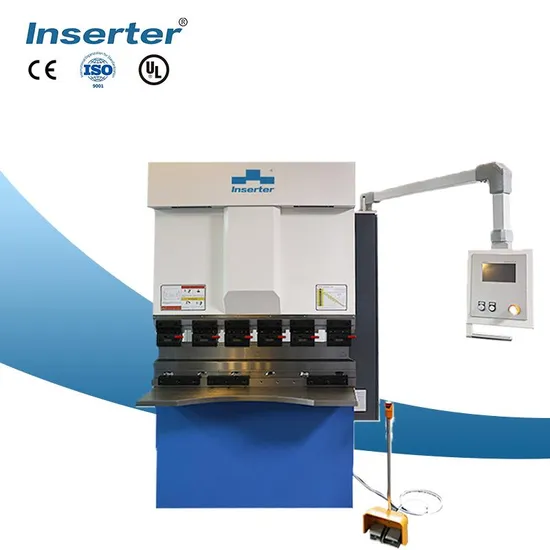

Ehp-3512 35 Ton Max Bending Length 1250mm Press Brake Machine

Product Description

Product Features • The servo oil-electric hybrid system uses two servo motors and servo pump to control the left and right cylinders
• The servo motor controls the output flow of the oil pump according to the program setting, and then controls the movement speed and position of the slider
• The whole process has no throttling phenomenon
• The distribution of oil is basically on demand, without throttling loss, which can realize the real sense of energy saving
• The application of servo motor greatly reduces the energy consumption of the system in the working gap
• Excellent energy saving effect, energy saving rate of 70%
Product Parameters

Parameter-Double Servo Hybrid CNC Press Brake
		A	B	C	D	E					L	W	H
Model	Force (kN)	Max. bending length (mm)	Distance between uprights (mm)	Throat depth (mm)	Cylinder stroke (mm)	Opening height (mm)	Main power (kW)	Max Speed(mm/s)			Dimensions(mm)			Weight (kg)
								Appro aching speed	Working speed	Returning speed	Length	Width	Height
EHP-3512★	350	1250	900	200	120	385	4.4	300	0-20	250	1650	1210	2245	2800
EHP-5016★	500	1650	1200	300	120	385	2×4.4	300	0-20	250	2180	1340	2385	4300
EHP-6025★	600	2050	1700	300	120	385	2×4.4	300	0-20	250	2680	1340	2385	4700
EHP-7025	700	2500	2000	300	120	400	2×4.4	300	0-20	250	2990	1370	2385	5900
EHP-8025	800	2500	2000	300	160	425	2×4.4	300	0-20	250	2990	1470	2410	6100
EHP-10032	1000	3200	2700	350	200	475	2×4.4	300	0-15	220	3500	1500	2645	7800
EHP-11025	1100	2500	2000	400	225	500	2×4.4	300	0-15	220	3010	1670	2720	7900
EHP-11032	1100	3200	2700	400	225	500	2×4.4	300	0-15	220	3710	1670	2720	9000
EHP-11041	1100	4100	3600	500	225	500	2×4.4	300	0-15	220	4610	1770	2720	10900
EHP-13025	1300	2500	2000	400	225	500	2×4.4	300	0-15	220	3010	1670	2720	7900
EHP-13032	1300	3200	2700	400	225	500	2×4.4	300	0-15	220	3710	1670	2720	9000
EHP-13041	1300	4100	3600	500	225	500	2×4.4	300	0-15	220	4610	1770	2720	11300
EHP-13051	1300	5100	4600	400	225	500	2×4.4	200	0-15	160	5610	1820	2960	15200
EHP-13061	1300	6100	5600	400	225	500	2×4.4	200	0-15	160	6610	1820	3110	17700
EHP-16032	1600	3200	2700	450	200	475	2×4.4	300	0-15	200	3500	1700	2720	9800
EHP-16041	1600	4100	3600	450	200	475	2×4.4	300	0-15	200	4500	1700	2720	11500
EHP-17025	1700	2500	2000	400	225	500	2×4.4	300	0-15	200	3030	1680	2720	8800
EHP-17032	1700	3200	2700	400	225	500	2×4.4	300	0-15	200	3730	1680	2720	10100
EHP-17041	1700	4100	3600	500	225	500	2×4.4	300	0-15	200	4630	1790	2720	12100
EHP-17051	1700	5100	4600	400	225	500	2×5.5	180	0-15	130	5630	1800	2960	17000
EHP-17061	1700	6100	5600	400	225	500	2×5.5	180	0-15	130	6630	1800	3160	20000
EHP-21025	2100	2500	2000	400	225	500	2×5.5	200	0-15	180	3030	1680	2720	9100
EHP-21032	2100	3200	2700	400	225	500	2×5.5	200	0-15	180	3730	1680	2720	10500
EHP-21041	2100	4100	3600	500	225	500	2×5.5	200	0-15	180	4630	1790	2720	13100
EHP-21051	2100	5100	4600	400	225	500	2×5.5	160	0-15	130	5630	1850	3100	18000
EHP-21061	2100	6100	5600	400	225	500	2×5.5	160	0-15	130	6630	1850	3210	21000
EHP-25025	2500	2500	2000	400	250	525	2×5.5	150	0-15	150	3050	1920	2975	12100
EHP-25032	2500	3200	2700	400	250	525	2×5.5	150	0-15	150	3750	1920	2975	14000
EHP-25041	2500	4100	3600	400	250	525	2×5.5	150	0-15	150	4650	1920	2975	16000
EHP-25051	2500	5100	4600	400	250	525	2×7.9	130	0-15	130	5650	1920	3125	21200
EHP-25061	2500	6100	5600	400	250	525	2×7.9	130	0-15	130	6650	1920	3325	24600
EHP-32032	3200	3200	2700	400	300	575	2×5.5	120	0-12	130	3930	2110	3205	17700
EHP-32041	3200	4100	3600	400	300	575	2×5.5	120	0-12	130	4830	2110	3205	20300
EHP-32051	3200	5100	4600	400	300	575	2×7.9	100	0-12	110	5830	2150	3690	26100
EHP-32061	3200	6100	5600	400	300	575	2×7.9	100	0-12	110	6830	2150	3855	30400
Note:For models with ★ in the upper right corner,there is no mechanical compensation device on the table.
