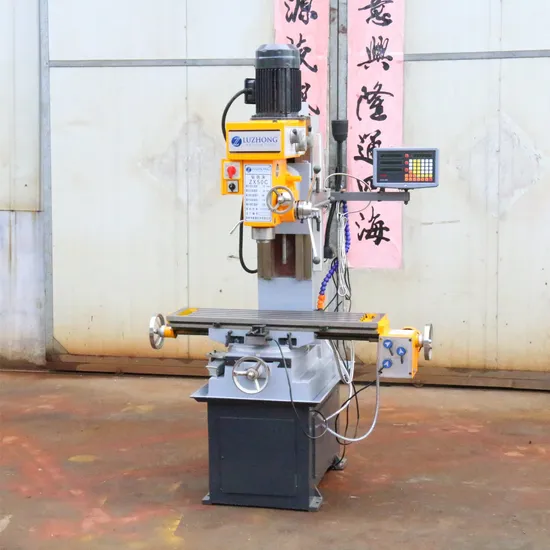

Luzhong metal electrical ZX50C multifunctional drilling and milling machine

Product Description

Luzhong metal electrical ZX50C multifunctional drilling and milling machine
Product Description
Product Parameters
The main performance characteristics:
1 Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical Specifications:

Specifications	ZX50C
Max.drilling dia.(mm)	50
Max.end milling width(mm)	100
Max.vertical milling dia.(mm)	25
Max.taopping dia.	M16
Spindle speed range (r.p.m)	115-1750/40-1500,8 steps
Spindle travel(mm)	120
Table size(mm)	800×240 optional:1000x240
Table travel(mm)	400×230 optional:600x240
Overall dimensions(mm)	1100×970×1650
Motor(kw)	1.5/2.2
N.W/G.W(kg)	550/650

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
