Automatic Aseptic Multi Tube Uht Sterilization Machine

Product Description

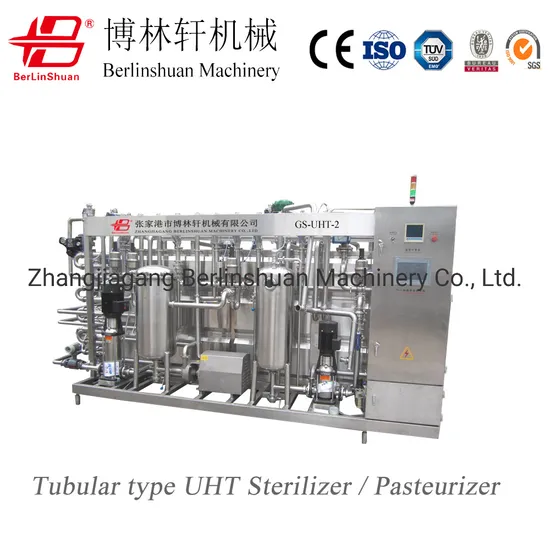

Tubular UHT Pasteurizer For Juice/Milk
Product Description Specifications
This Sterilizer is the ideal equipment for liquid food sterilization, such as milk, yogurt, juice etc.
Compared to other sterilizers, the UHT Tubular Sterilizer has the following characteristics:
1. High heat effect: 90% of the heat can be recycled after heating the material.
2. The material is pumped into heat exchanger and homogenized after its temperature is raised to 65 to 70 . After homogenization, the material is heated to 90-110 pasteurize sterilizing. Finally, the material is cooled to 4 -25 and prepared for aseptic filling station ,cold filling system or cooled to 80-90 and prepared for hot filling station .
3. High fully automatic processing: can automatically be controlled and record from CIP cleaning to pipe sterilizing and the material sterilizing.
4. Reliable sterilization temperature control and precision: Automatically control the affecting sterilization temperature system such as the steam pressure flow, and material flow.
5. The inside of the pipes are polished with advanced technology. The pipes are automatically jointed. In order to ensure a
fully aseptic condition, the tubular pasteurizer adopts an automatic cleaning system with a whole process sterilization.
6. Strong and reliable safety and productivity system. The steam, hot water and material flow pressure are all under a fully
automatic protection and alarm system.
7. The main fittings such as material pump, hot water pump, valves, electric and control equipments, and all other processing equipments are all world famous brands.
This pasteurizer can be combined with a special yogurt sterilizer if requested.
It fits to various aseptic packaging such as: Aseptic carton, plastic film, PET bottles, etc. especially for liquid milk production
Technical Parameter

Model	Capacity (t/h)	Steam Consumption (kg/h)	Steam Pressure (bar)	Electric Power (kw)	Outside Size (L×W×H)	Weight (kg)	Caliber(Φ)
							Material	Steam	Medium
GS-UHT-1	1	130	2.5	1.9	3.3×1.6×2.0M	1500	Φ25	DN25	25
GS-UHT-2	2	260	2.5	2.1	3.5×1.6×2.0M	1600	Φ25	DN32	25
GS-UHT-3	3	390	2.5	3.0	3.5×1.8×2.0M	1650	Φ38	DN40	38
GS-UHT-4	4	520	2.5	3.0	3.5×1.8×2.0M	2000	Φ38	DN40	38
GS-UHT-5	5	650	2.5	3.0	3.5×1.8×2.0M	2100	Φ38	DN50	38
GS-UHT-6	6	780	2.5	3.0	3.5×1.8×2.0M	2200	Φ51	DN50	51
GS-UHT-8	8	1040	2.5	3.7	4.5×2.0×2.0M	2500	Φ51	DN65	51
GS-UHT-10	10	1300	2.5	5.2	4.5×2.0×2.0M	2800	Φ51	DN80	51
GS-UHT-15	15	1950	2.5	7.0	6.5×2.0×2.2M	3500	Φ63	DN80	63
GS-UHT-20	20	2600	2.5	11.0	6.5×2.0×2.2M	4300	Φ63	DN100

Our Services
1.Provide for equipment inspection certificate and manual, to ensure that users properly install and use.
2.Equipment to reach the destination, the company will send engineers to guide installation and
commissioning and customer training until satisfied.
3. The warranty period will be free to customers wearing accessories, after one year warranty period, our
company to provide parts at cost.
4.we provide lifelong maintenance service, including if necessary, to send engineers to the customer at the
service.

---
