Windbell Gas Station Wireless Atg System Fuel Tank Monitoring System

Product Description

Product Description The WINDBELL M&C Gas Station Wireless Atg System Fuel Tank Monitoring System is mainly used to replace traditional manual gauges at gas stations to measure oil level, water level, temperature, density, and other parameters of storage tanks. It can provide real-time feedback on the fuel inventory and safety status of associated equipment at gas stations.

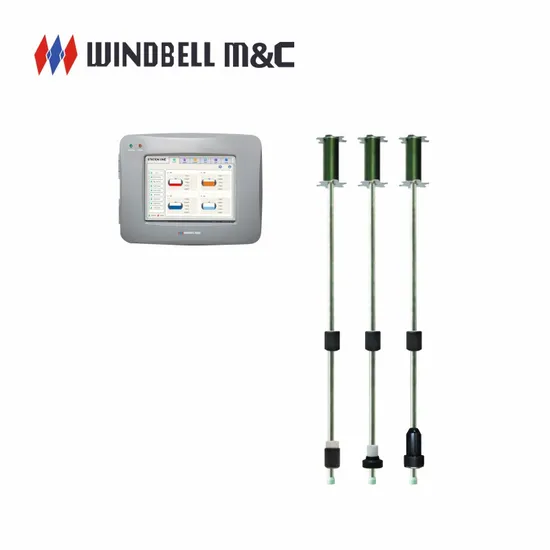

The WINDBELL M&C Wireless ATG System mainly consists of SP Series Magnetostrictive Probe,SS Series console and Wireless Data Transmitter. The probe is responsible for collecting data such as fuel level, water level, temperature, and density inside the storage tank, and transmitting it to the console through a wireless data transmitter. The console is responsible for receiving, processing, and displaying this data, while providing functions such as alarms and data analysis.
Product Advantage Automaticaly measure the fuel level, water level, density (optional), and temperature of the fuel tank, and automatically calculate the tank capacity. Capabe of generating and printing delivery, sales, inventory, and alarm reports, providing petrol stations with a comprehensive management solution for the delivery, sales, inventory of fuel. Equipped with shift handover function, it can achieve automatic or manua shift handover. Equipped with high and ow fuel level alarms and pre alarms, high water level alarms, high temperature alarms, fuel tank leak alarms, etc. Capabe of monitoring multiple oil tanks in real-time simultaneously, suitable for various types of oil tanks with a diameter of less than 5 meters. Equipped with 2 reay port, it can be externally connected to an ex-proof sound and light alarm in the tank area. Equipped with RS485 port, it can be externaly connected to the oil unloading anti overflow device and submersible pump controller. It has a static eak detection function and can be connected with a leak sensor to realize the leak monitoring of double-wall oil tanks, double-wall pipelines, tank sump and dispenser sump. When a fue tank is non-refueling, it has a anti-theft oil alarm function. Equipped with muti-level password access management. Can be connected to an externa printer. API interface can be provided to connect to the gas station management system, support access to third-party software for secondary deveopment, and be able to upload data in real-time to relevant business management systems. Support remote monitoring, querying rea-time data and summarizing through the internet. Equipped with device faut self-diagnosis function. Product Parameters

Model	WB-SS200B Smart Console
Power	AC90 ~ 276VAC, 47-440HZ
Working temperature	-20ºC to 60ºC (-4ºF to 140ºF)
Display	12-inch color touch screen
Ex-proof grade	[EX ia Ga] IIB
Safety barrier	GSB06
Relay output	2 groups
External extension anti-overfill valve console	WB-DFV100
External extension submersible pump console	EM02
Output voltage	DC 12V
Monitor probes	8, Up to 32
Leak sensor	Optional
SMS module	Optional
GPRS module	Optional
Built-in printer	Optional
WIFI function	Optional
External sound-light alarm	Optional
External printer	Support
Running/Alarm indicator	Yes
Inventory and delivery management	Yes
Density and mass measurement	Yes
RS485 port	1
RS232 port	2
USB port	1
Ethernet port	1
Buzzer alarm	Yes
Tank table	Yes, simulate/input/import/export
Reports	Inventory, delivery, shift, alarm, leak detection test, system log, SMS for optional
PC remote software	PCR200
Anti-theft function	Yes
Dimension (L*W*H)	42*36*16cm
Model	WB-SP300 Series Magnetostrictive Probe
Precision	±0.5mm
Repeatability	±0.1mm
Resolution of fuel level	0.01mm
Resolution of water level	0.01mm
Points of TEMP. measured	5
Resolution of temperature	0.0625ºC
Accuracy of density measurement	+/-1kg/m³
Density measure range	700-780kg/m³, 810-890kg/m³
Communication mode	RS485
Maximum communication distance	1200m
Communication cable	4-core shielded cable
Rated working pressure of probe	1.6MPa
Material	316L stainless steel
Protection grade	IP68
Operating temperature range	-40ºC~60ºC (-40ºF to 140ºF)
Mark of explosion proof	Ex ia IIA T4 Ga, Ex II 1G Ex ia IIA T4 Ga
Associated apparatus	WB-GSB03, GSB06, GSB08 safety barrier
Definition of power cable	BLUE: POWER+, BROWN: RS485A, WHITE: RS485B, BLACK: POWER-
Applicable medium	Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil
Installation method	Flange type, Threaded type
Reliability	Anti electromagnetic interference, anti surge
Dimension (L*W*H)	185*12*12cm (Can be customized)
Model	SM300 Wireless Data Transmitter
Emission frequency	470-510MHz
Transmit power	≤21dBm
Transmission rate	≤ 62.5 kbps
Charging cycle	8-10 months
Wireless communication distance (sight distance)	500m
Working temperature	-40ºC to +70ºC
Ex-proof grade	Ex ib IIA T4 Gb
Protection grade	IP68
