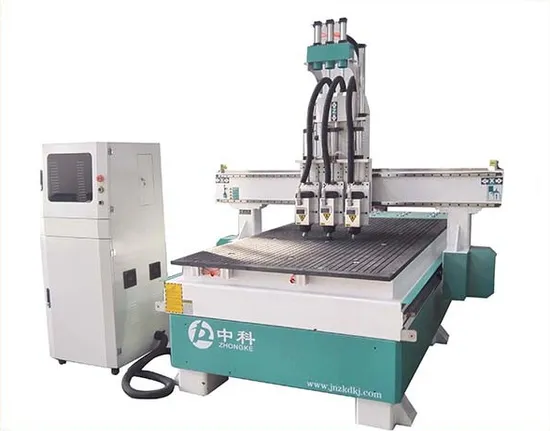

Pneumatic Three Heads Atc Model Wood CNC Router Machine/Cabinet Door Making Machine/Wood Engraving Machine

Product Description

Pneumatic Three Heads Atc Model Wood CNC Router Machine/Cabinet Door Making Machine/Wood Engraving Machine
Specifications:

Model	ZK1325
X,Y,Z axis working area	1300*2500*200mm
Whole structure	Welded Steel gantry structure
Table surface	vacuum table with 5.5KW vacuum pump
X,Y,Z structure	Taiwan PMI/HIWIN Square linear guide rail
X,Y structure	Rack and pinion transmission, high speed and more stable; Y -double motor drive
Z structure	Imported ball screw, high precision
Max. idling speed	50m/min
Max. working speed	25m/min
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	3.5KW water cooling spindle(Optional: air cooling spindle)
Spindle rotating speed	6000-24000rpm/min
Collect size	ER 25
Operation language	G code (plt, mmg, uoo, bmp)
Driving system	Easy servo motor
Operating system	Ncstudio control system
Working voltage	380V/3phase
Software	UcancamV8 / Type3 / Artcam software (option)

Features:
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with thick steel.
3. Equipped with 3.5KW air cooling spindle, can be optional water cooling spindle, more powerful, enough to cut more thickness materials.
4.The pressing handle oiling system
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Ncstudio control system, can be optional DSP control system.
7.Taiwan HIWIN square guide rail, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table , more stable when engraving wood doors
9.Higher configuration is optional, such as servo motor and SYNTEC control system
Samples:
Packaging and shipping:
Some other machines in our factory:
We have built factory more than 10 years.,if you were interested in our machine,welcome contact us,we'll give you a best result:

---
