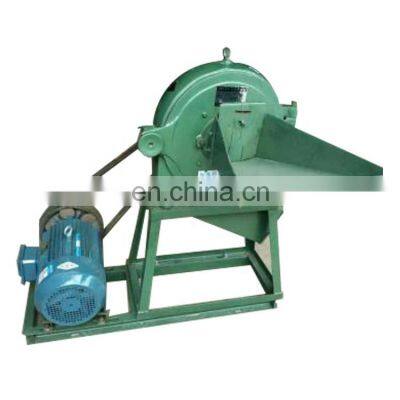

barley grinder/herbs crushing machine/animal feed grain grinder machine//0086-13673629307
Description:
1.Machine structure is rational, durable, safe and reliable, easy to install, convenient operation, small anti-vibration effect.
2.This machine can be used with motor and diesel engine.
3.Tooth claw type pulverizer mainly has the body, the cover, the machine rotor assembly, screen, feed device, frame and so on six parts, body and rotor assembly together form the crushing chamber, rotor assembly room main working parts, materials of shattered in the crushing chamber complete.
4.When the material entered into the crushing chamber, in the round and flat part of the tooth gear fault strike and knead into effect, broken into a fine powder quickly and plasma shape, and air flow in the centrifugal force function, through the sieve hole discharge from the mouth.
Application scope:
1.SL series tooth claw type crusher can crush all kinds of raw materials, corn, wheat, soy, grains, straw, vines, dry fresh potato; Leaf hulls food and feed and crushing gesso, lead powder, slippery powder, rare earth industry, chemical industry, clay, coal and other minerals low hardness etc,
2.also can crush a variety of Chinese traditional medicine.
Parameter:
Model
| TZ-160
| TZ-200
| TZ-250
| TZ-280
| TZ-300A
|
Spindle speed (turn/min)
| 6000
| 4200
| 4200
| 4200
| 4200
|
Rotor diameter(mm)
| 160
| 200
| 250
| 280
| 300
|
Flat teeth number
| 3
| 4
| 4
| 6
| 6
|
Round teeth number
| 6
| 8
| 8
|
|
|
Motor Voltage(v)
| 220
| 220
| 220
| 220
| 220
|
Power(kw)
| 1.1
| 1.5-2.2
| 2.2
| 2.2-3
| 3
|
Capacity(kg/h)
| 300-800
| 500-1000
| 700-1600
| 800-2200
| 900-2500
|
Weight(kg)
| 26
| 30
| 35
| 45
|
|
Dimensions(mm)
| 430×600×650
| 650*450*800
| 700*450*850
| 500×500×980
| 500*500*980
|
Feel free to contact me:
>>
