95A 1.4G/Cm3 Cable Flame Retardant PVC Compound

US$780.00-950.00 20 Tons (MOQ)

Basic Info.

Model NO.
PVC compound
Usage
General Plastics
Plastic Properties After Heated
Thermosetting Plastic
Plastic Forming Method
Extrusion
Color
Any Colors
Transport Package
25kg/Bag
Specification
60 70 80 90 105
Trademark
LOGNTAI
Origin
China
HS Code
3904210000
Production Capacity
500ton/Month

Product Description

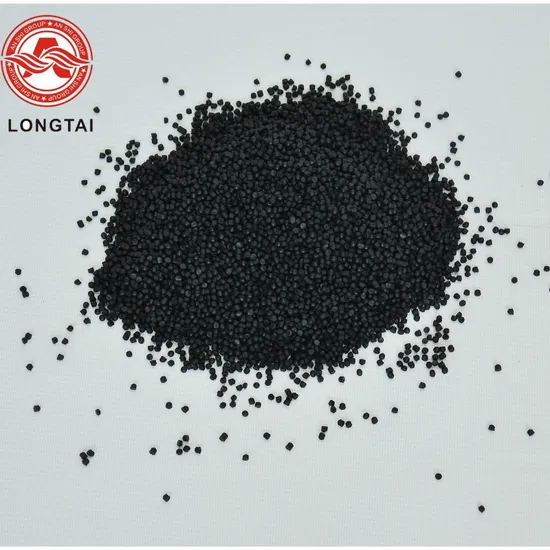

95A 1.4g/cm3 Cable Flame Retardant PVC Compound Description:
PVC compound can be used for power cables, communication cables, wires, sound lines, video lines, microphones, data cables, charging cables and other cables.
Package is normal bag (25kg) or jumbo bag (650-850kg).
Specs Features Application

Common Sheath Material

Passed UL test, Cold-form test -20 ºC, Heat resistance grade: 60ºC 75ºC 90ºC 105ºC, Combustion test: VW-1 FT2, Environment friendly.

Suit for various indoor power cord sheath material .

Cold-Resistant -40ºC Sheath Material

Passed UL test, Cold-form test -40 ºC, Heat resistance grade: 60ºC 75ºC 90ºC 105ºC, Combustion test: VW-1 FT2, Environment friendly.

Suit for outdoor -40ºC power cord sheath material .

Cold-Resistant -50ºC Sheath Material

Passed UL test, Cold-form test -50 ºC, Heat resistance grade: 60ºC 75ºC 90ºC 105ºC, Combustion test: VW-1 FT2, Environment friendly.

Suite for outdoor -40ºC power cord sheath material .

UV- Resistant Sheath Material

Passed UL test, Cold-form test -40 ºC, Heat resistance grade: 60ºC 75ºC 90ºC 105ºC, UV- Resistant , Combustion test: VW-1 FT2, Environment friendly.
Suit for outdoor UV- Resistant power cord sheath material

Non-migrating Sheath Material

Passed UL test, Cold-form test -20 ºC, Heat resistance grade: 60ºC 75ºC 90ºC 105ºC, Combustion test: VW-1 FT2, Passed ABS and PS plate Non-migrating test; Environment friendly

Suit for Non-migrating Wire &Cable material.

1.Technical specifications of 70 ºC pvc compound
Tensile strength MPa 20.5
Fracture tensile strain % 320
Ageing temperature ºC 100
Ageing time h 168
Tensile strength after ageing MPa 22.5
Max change of tensile strength % +12
After ageing fracture tensile strain % 290
Max change of fracture tensile strain % -10
Thermal deformation % 28
Thermal ageing quality loss g/m2 19
200ºC thermal stability time min 90
20ºC volume resistivity Ω.cm 2.0*1011

2. Technical specifications of 90 ºC pvc resin compound
Tensile strength MPa 20
Fracture tensile strain % 330
Ageing temperature ºC 100
Ageing time h 240
Tensile strength after ageing MPa 21.5
Max change of tensile strength % +8
After ageing fracture tensile strain % 310
Max change of fracture tensile strain % -6
Thermal deformation % 28
Thermal ageing quality loss g/m2 9
200ºC thermal stability time min 120
20ºC volume resistivity Ω.cm 2.0*1010

Who we are: 1) Specialized manufacturer;
2) Established in 2002, successfully listed the New OTC Market in 2016, stock code: 836898;
3) More than 200 employees;
4) Company type: OEM/ODM;
5) World market: more than 40% of product are export to Europe, America, Japan, Southeast Asia and Africa, and so on;
6) Products : Agriculture twines, Package ropes, Cable materials and Textile materials;
7) All products meet RoHS and REACH by SGS.
