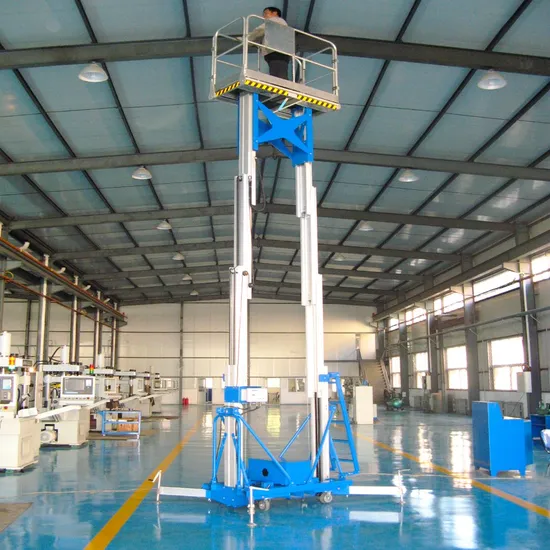

Double Masts Vertical Lift of Gtwy2-8 "10m" Made in China

Product Description

Product Highlights:
Product Highlights
Suitable for warehouses, supermarkets, hotels, airports, and other narrow space environments
Outrigger leveling system with the limit switch, safe and reliable
Manual lowering switch
AC power to platform
• Parameters:

/Model	GTWY2-8
/Platform
Max. Working Height	10m
Max. Platform Height	8m
Loading Capacity	250kg
Occupants	2
Platform Dimension	1.45m x 0.7m
/Overall Dimension
Overall Height	1.99m
Overall Width	0.81m
Overall Length	1.48m
Outrigger coverage	2.1m x 1.7m
/Weight
AC	645kg
DC	660kg
/Power
AC Voltage	380V/220V/110V
AC Motor	1.5KW
DC Voltage	2x12V
DC motor	1.6KW
Charger	12V/15A

Standard Features: Deadman switch: There are buttons of emergency stop, ascending, descending and public on the control panel; When ascending or descending, it has to press and hold the corresponding button and ""public"" button before starting the machine; It can avoid accidents for workers caused by accidentally touching or by wrong operation of single button to start." AC power on platform: Electric tools can be used directly on the platform." Outrigger interlock: The machine can lift only after the four outriggers are installed in the right place and forced to the ground." Outrigger indicators: All four outriggers must be properly installed and landed, and then the four outriggers indicators on the control panel will light up, accordingly the machine can be powered up and can lift. Resolutely put an end to safety accidents that occur because workers do not operate according to regulations or have a chance to use machine without inserting their outriggers." Aluminum alloy outriggers: Aluminum alloy plug-in outriggers is adopted, which has large contact area and more stable structure. And the aluminum alloy outriggers are free of maintenance for life." Forklift pocket: All products are designed with standard forklift pocket for easy loading and unloading. The center of gravity of the aluminum alloy machine is unevenly distributed. If there is no forklift pocket, it will have a great probability of tipping over during transportation, which may cause equipment damage and casualties." Sync device: The sync device can ensure that in the process of ascending or descending, each mast can ascend or descend synchronously under the condition of slight obstruction inside the masts." Signal cable: High flexibility drag chain cable, bending life: 50 times/min, > 5 million times, anti-shallow water, anti-oil, anti-ultraviolet, weather-resistant, cold-resistant, wear-resistant, and able to bear heavy mechanical external force." Guide devices between masts (sliders and guide wheels): Self-lubricating polymer sliders and imported nylon wheels are adopted between the masts, which are free of lubrication and can avoid the instability of equipment the resulted by internal material wear of aluminum alloy after long-term using." Explosion-proof valves: It can revent the machine from falling down due to oil pipe bursting." Seals: NOK seals; sealing effect is excellent and durability." Masts: The width of the masts determines the shaking degree of the machine after it rises, and we adopts 200mm high-strength aluminum alloy ultra-wide masts, which can ensure less shaking." Company information Boonai (Suzhou) Lift Equipment Co., Ltd as a mordern manufacturing enterprise is specialized in aerial work platform,
providing package service for design, production, sales and after-sales.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai
by following the steps of the giants for the innovation of products and the improvement of process and purchasing
the perfection on every detail.
• Company Certificates:
• Part of Our Clients:
• Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault.
3. We will send you parts for free if there are any non-human factors problem during
warranty time.
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and
holidaysm engineers are available to your company if necessary.

---
