Awwa C304 Prestressed Concrete Cylinder Pipe Steel Bar Wrapping Machine

Product Description

AWWA C304 Prestressed Concrete Cylinder Pipe Steel Bar Wrapping Machine
pccp concrete pipe production line making machine:working shop
Our factory is a professional manufacturer of cement products complete sets equipment and molds. It has more than 40 years of experience in research and development, design and manufacture of cement products machinery and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2008 quality management system certification, and obtained a number of national invention patents. Our main products: DN400-4000mm PCCP Pipe Production Line Concrete Drainage Pipe Production Line Cage Welding Machine Concrete Pipe Mold In order to expand the international market, our company established SHANGHAI SINOMAC MACHINERY INDUSTRIAL CO.,LTD in Shanghai in 2015. Our company have sell more than 60sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP production line equipment has been exported to Canada, Egypt, India, Indonesia ,South America, Africa and so on.
Welcome all the customers to visit our factory and cements products production line working site.
pccp concrete pipe production line making machine:pccp pipe in stock

Name	Diameter Range	Length	Application
DN600-1600X6000MM	600 to 1600mm	6000MM	Water Transfer/Power Plant
DN1600-3600X6000MM	1600 to 3600mm	6000MM	Water Transfer/Power Plant
PCCP Concrete Pipe Production Line Types

The full completely DN600-4000mm PCCP Pipe Production Line main equipment includes: Spigot Bell Ring Roller, Bell Plate Edger, Spigot/Bell Ring Expanding Machine, Spigot/Bell Port Assemble Platform, Steel Cylinder Welding Machine, Steel Cylinder Water Pressure Testing Machine, Concrete Placer, Wire Wrapping Machine, Concrete Spraying Machine, PCCP pipe internal/External Pressure Testing Machine, Concrete Molds etc.
pccp concrete pipe production line making machine:pccp pipe mould
2.Working Flowchart
Our factory could supply PCCP concrete pipe wire wrapping machine. The diameter from 600mm to 4000mm, length from 3000mm to 6000mm.
JCCP PCCP Concrete Pipe Wire Wrapping Machine

PCCP Concrete Pipe Wire Wrapping Machine
Model	DN600-16000X6000mm	DN1800-3600X6000mm
Type	Horizontal	Vertical
Diameter	600-1600mm	1400-3200mm
Length	3000-6000mm	3000-6000mm
Wire Thickness	5-7mm
Max Wrapping Speed	106m/min
Max Rotate Speed	25 rpm

PCCP pipe wire wrapping machine:in making

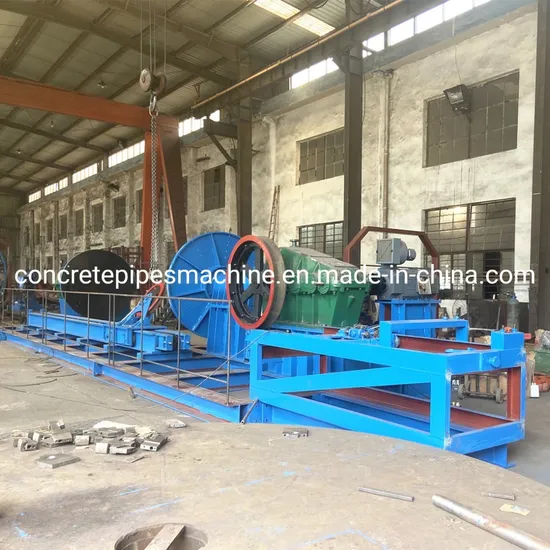

PCCP pipe wire wrapping machine:horizontal types
PCCP pipe wire wrapping machine:vertical type
3.Main Making Machine List:
A.Spigot and Bell Port Rolling Machine
pccp concrete pipe production line making machine:steel spigot/bell ring rolling machine
The rolling machine is main to form the spigot/bell port into circle.It could make different diameter spigot and bell circle through changing upper roller.
B. Edge Rolling Machine
pccp concrete pipe production line making machine:steel bell ring edging machine
The Edge Rolling Machine is to change the spigot plate into requirement size plate through rolling.
C. Expanding Machine
pccp concrete pipe production line making machine:steel spigot/bell ring expanding machine
D.Φ600-1600 Small Spiral Welding Machine
pccp concrete pipe production line making machine:small steel cylinder welding machine
pccp concrete pipe production line making machine:big steel cylinder welding machine
The small spiral welding machine main through continuous winding/rolling/welding and automatic cutting to make required length cylinder.
E.Φ600-1600 Horizontal Cylinder Water Testing Machine
pccp concrete pipe production line making machine:steel cylinder water pressure testing machine
Horizontal Cylinder Water Testing Machine main to make water pressure testing for cylinder.
F.Φ600-3600 PCCP Pipe Mouldjacking concrete pipe production line making machine:jacking conrete pipe mould
pccp concrete pipe production line making machine:DN600x6000mm pccp pipe mold
G. PCCP Pipe Concrete Casting Machine
pccp concrete pipe production line making machine:pccp pipe concrete casting machine
pccp concrete pipe production line making machine:pccp pipe concrete casting machine
pccp concrete pipe production line making machine:pccp pipe concrete casting machine
H.Φ600-1600 Different Speed Horizontal Wrapping Machine
pccp concrete pipe production line making machine:pccp pipe wire wrapping machine
Horizontal Wrapping Machine is to wrap the wire into the outside of pipe core.
I.PCCP Concrete Pipe Coating Machine
pccp concrete pipe production line making machine:pccp concrete pipe coating machine
J. PCCP Pipe Outer Pressure Testing Machine
K. Final Products
pccp concrete pipe production line making machine:pccp pipe checking
pccp concrete pipe production line making machine:pccp pipe steel cylinder welding machine installation in Eygpt NPC National Pipe Company
pccp concrete pipe production line making machine:jacking concrete pipe mold loading into container and export to Canada
pccp concrete pipe production line making machine:jacking pipe cage welding machine export to India
Welcome to visit our factory and PCCP Pipe Production Line Working Site.

---
