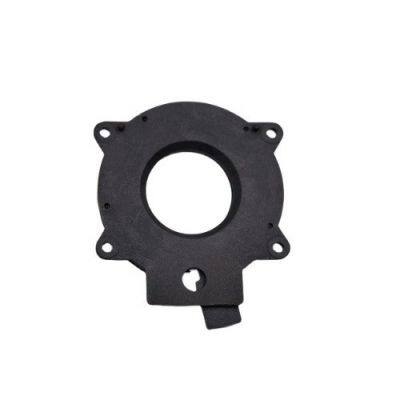

0~7.2mm Manual focus iris for vari-focal mechanical vision lens SLR camera lens follow spotlight

Product Details

Product Description

Product Description

Technical parameters of manual iris
No.	Model No.	Aperture Hole Diameter(mm)		Diameter (mm)	Thickness (mm)	Blade Q'ty (pcs)	Lever Length (mm)
		Min.	Max.
1	01-004-004	0.35	8.2	23	3.5	8
2	01-004-007	0	7.2	32	3.5	5	5
3	01-004-010	1.3	20	32	3.8	10	5.6
4	09-004-001	0.8	6	13	6	8
5	09-004-002	0.5	7.5	14	5.5	8	4.5
6	09-004-003	0.8	8	14.8	4.5	8	6.5
7	09-004-004	0.8	9.5	16.4	4.1	8	5.5
8	09-004-005	1	10.4	22	7.1	9	4.5
9	09-004-006	0.5	10.6	20.5	6.7	9
10	09-004-007	0	11.8	23.2	3.5	6	9
11	09-004-008	1	12	19.8	5	10	4.5
12	09-004-009	1	14	26.3/23.8	2.2-4	10	8
13	09-004-010	0.5	15	28	9	12	8
14	09-004-011	1	16	26	4.8	10	8
15	09-004-012	1.5	17	32.5	6	10	5.5
16	09-004-013	1	18	30	4.9	10	6
17	09-004-014	1	18	28	5	12	6.5
18	09-004-015	4.5	18	34	3.1	10	10
19	09-004-016	1.5	18.7	31	4	10
20	09-004-017	1.5	18.7	32.5	6	7	5.5
21	09-004-018	1	18.9	31.3	4	10	7
22	09-004-019	1	20	30	5.5	12	15
23	09-004-020	1.8	22	41	3.3	11	12
24	09-004-021	1.5	23	37	7	12	10
25	09-004-022	1.5	25	37	7	14	6.5
26	09-004-023	1.5	26	38	6	14	5
27	09-004-024	2	28	50	16.8	12
28	09-004-025	1	29	44	6	10	5
29	09-004-026	2	29	51.8	4.8	11	12
30	09-004-027	1.5	33	53	6	12	5.5
31	09-004-028	1.5	34	49	5.6	14	15
32	09-004-029	1.5	36	50	6	18	7.5
33	09-004-030	2.5	36	56	6	14	15
34	09-004-031	1.5	37	53	6	16	15.5
35	09-004-032	2.5	42	58	6.5	18	24
36	09-004-033	2	44	60	6	16	6.5
37	09-004-034	2	50	76.5	7.1	11	7.5
38	09-004-035	2	50	92	12.2	11
39	09-004-036	2	50	70	7.8	16
40	09-004-037	3	52	73	8	14	18
41	09-004-038	4	60	82	8	18	22
42	09-004-039	0.3	6	13	6	8	6.5
43	09-004-040	1	11	20.5	6.7	10	8.5
44	09-004-041	0.5	7.5	Holder 23	Holder 6.5	8	4.5
45	09-004-042	1	12	Holder 27	Holder 8	8	4.5
46	09-004-043	1	18	Holder 36	Holder 7	10	6
47	09-004-044	1	20	Holder 36	Holder 7	12	15
48	09-004-045	1.5	23	Holder 44	Holder 8	12	10
49	09-004-046	1.5	25	Holder 44	Holder 8	14	6.5
50	09-004-047	1.5	34	Holder 55	Holder 7	14	15
51	09-004-048	2.5	42	Holder 66	Holder 8	18	24
52	09-004-049	3	52	Holder 84	Holder 9.4	14	18
53	09-004-050	4	60	Holder 90	Holder 9	18	22

---
