Zs Series High Efficient Vibrating Screen Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
ZS
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Drum
Stirring Type
Spiral
Working
High Speed Mixer
Applied in
Food or Pharmaceutical
Meshes Screen
2-200 Mesh
Vibration Frequencyed
1500t/Min
Weight
200-450kg
Mixer Type
Powder Mixer
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Standard Export Wooden Cases
Specification
GMP, CE
Trademark
SPM
Origin
China
HS Code
8474390000
Production Capacity
40-5000kg/H

Product Description

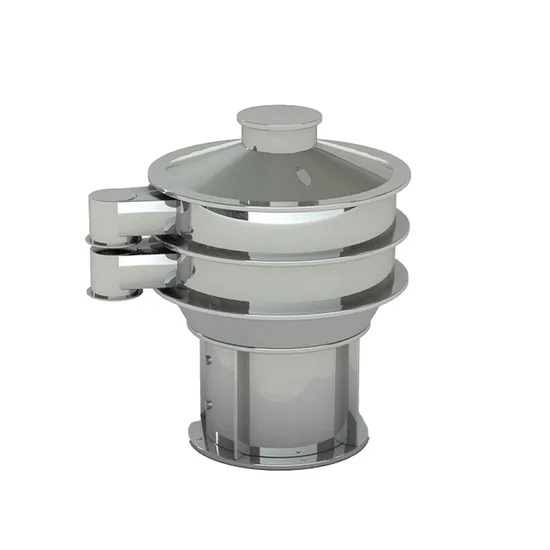

Zs Series High Efficient Vibrating Screen Machine
Main Application:
This machine is applied for continuous screening of powder and inhomogeneous granulates in such trades as pharmaceutical, chemical and foodstuff etc..
Technical Parameters:
Model Production capacity Meshes screen Vibration frequencyed Motor power Overall dimension Weight
ZS-400 40-500kg/h 2-200mesh 1500t/min 0.4kw 600*500*1100mm 200kg
ZS-600 200-1500kg/h 2-200mesh 1500t/min 0.4kw 800*700*1150mm 250kg
ZS-800 200-1200kg/h 2-200mesh 1500t/min 0.75kw 1100*950*1150mm 300kg
ZS-1000 500-3500kg/h 2-200mesh 1500t/min 1.1kw 1200*1100*1250mm 380kg
ZS-1200 800-5000kg/h 2-200mesh 1500t/min 1.5kw 1380*1300*1280mm 450kg

Features:
Comprised of vertical vibration motor, screen base, mesh frame, screening chamber and rubber vibration ring etc, this machine can he used either for single layer or multilayer grading, featuring compact structure, convenient handle and maintenance, stable operation, low noise, large handling, small size and strong availability etc..
