US$14,000.00-18,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type
PE Film Blowing Machine
Maximum Folding Width of Film
800mm
Computerized
Computerized
Single Side Film Thickness
0.02-0.1mm
Transport Package
Wooden Case/Warp Film Packing
Specification
HR2SJ45-800
Production Capacity
70kg/H
Packaging & Delivery
Package Size
105.00cm * 150.00cm * 150.00cm
Package Gross Weight
1100.000kg
Product Description

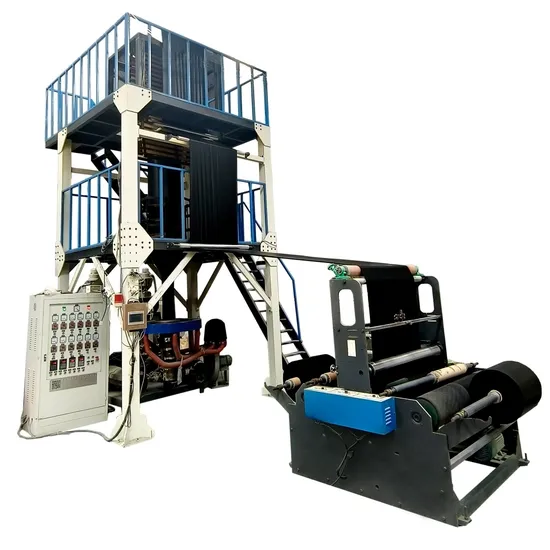

Two layer rotary die head DHL UPS Fedex Express Bag Courier Bag Film Blowing Extrusion Machine
Usage:
It is used to blowing low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) and other plastic films. It is widely used in liquid packaging, printing compound, clothing textile packaging, industrial packaging, etc.
Parameters:
| Model | 2SJ-45 | 2SJ-55 | 2SJ-60 |
| Screw dia (mm) | 45X2 | 55X2 | 60X2 |
| Speed (r/min) | 12-120 | 12-120 | 12-120 |
| Screw LD | 28:1 | 28:1 | 28:1 |
| each screw outout (kg/h) | 35 | 50 | 60 |
| Main motor power (kw) | 2X11 | 2X15 | 2X18.5 |
| Die head size (mm) | 140-200 | 200-280 | 300-350 |
| Head rotating freely | Continuously |
| Film thickness (mm) | 0.02-0.10 | 0.02-0.10 | 0.02-0.10 |
| Max width (mm) | 800 | 1000 | 1500 |
| Power (kw) | 45 | 53 | 65 |
| Weight (kg) | 3500 | 4500 | 5200 |
| Machine size (mm) | 4200*2200*4200 | 4600*2400*5000 | 5200*2700*6000 |
CHARACTERISTICS:
1,Double-layer co-extrusion laminated film can prolong the length for preservation of liquid package
2,The cylinder and the screw stem of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
3,The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.
4,Double-rolling and double-cutting coiling unit adopts torque motor to keep proper tensions and make rolling even and roll changing
Optional options:
1: Rotary die head
2: double winder
3: Corona machine(if need printing)
4: auto suction
5: Meter and weight control
Parts List:
Heating ring: 4Pcs
Temperature Controller: 4pcs
Voltmeter: 4pcs
Thermocouple: 4pcs
Filter: 4 meter
Tools: 1set
Operation Manual: 1pcs
More Machine photos:
Exhibition:
Machine packing and delivery
>>
