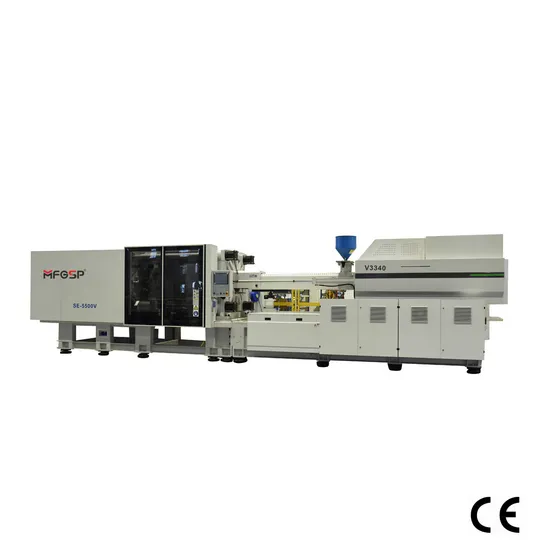

SE-5500V High Efficiency Precision Energy-saving Environment-friendly Intelligence All Electric Injection Molding Machine

Product Description

All Electric Injection Molding Machine

Performance characteristic:
Zero-resistance clamping injection guider structure, heavy loaded guider device supported by linear track, better wear resistance, lower friction and more smooth operation. Optimize mold structure, tie bar no touch with moving platen,no lubrication. The system has high rigidity and strength, guarantee the accuracy of platen parallel excellently.
T-slot & screw fixation platen embedded moldlocating ring design, high-standard clampling system reduces mold loss and makes more easy mold installation.
Fast and smooth mold movement, high torque, less resistance. Clamping servo motorconnects ball screw, flexible operation and simply maintenance. High- quailty belt, warranty 10 years;superior rotating wheel,low inertia.
Top responsibility servo motor and high toreque ball screw is key element, origin Japan technology to keep advantage leading ir the word, precise for mold movement.
Parameter:

MODEL			SE-5500V
CLAMP TONNAGE		kN	5500
SPACE BETWEEN Tl E-BARS		mm	915x855
PLATEN DIMENSION		mm	1330x1260
OPEN STROKE		mm	850
MOULD THICKNESS		mm	350-900
EJECTOR STROKE		mm	180
EJECTOR FORCE		kN	135
EJECTOR NUMBER			21
MACHINEWEIGHT		T	32.5
SCREW DIAMETER		mm	60	65	70	65	70	80	75	80	90
INJECTION CAPACITY		cm3	891	1045	1212	1128	1308	1709	1679	1910	2417
INJECTION WEIGHT (PS]		g	810	951	1103	1027	1191	1555	1528	1738	2200
PLASTICIZING CAPACITY (PS)		kg/h	226	252	290	252	290	320	304	320	361
SCREW SPEED		rpm	250			210			190
HEATER BAND			4+1			5+1			6+1
HE/JER POWER		kW	23.6			29.1			38
NOZZLE PRESSING FORCE		kN	58.8			65			75
STANDARD			1790			2280			3340
INJECTION SPEED		mm / s	160			160			160
INJETION RATE (PS)		cm3 /s	452	531	616	531	616	804	707	804	1018
INJECTION PRESSURE		Mpa	211	180	155	215	185	140	215	190	150
		kgf/cm2	2155	1836	1583	2193	1887	1428	2193	1938	1530
MAX.INJECTION HOLD PRESSURE		Mpa	169	144	124	172	148	112	172	152	120
		kgf/cm2	1724	1469	1266	1755	1510	1142	1755	1550	1224
TOTAL POWER		kW	73.6			137			159
We reserve the right to change specifications without prior notice.

OVERALL DIMENSIONS
PLATEN DIMENSIONS
Application:
The SE series of all-electric injection molding machine are more suitable for household appliance, medical,electronic optics, packaging,auto parts, and other industries with its advantages of high speed, high efficiency, high precision, energy saving and environment cleaning .
