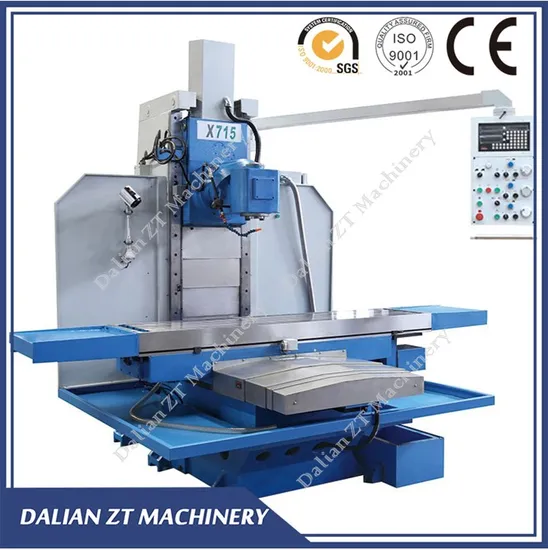

Heavy Bed type Large Worktable Universal Vertical Milling Machine with 3-axis DRO
|
US$25,000.00-32,000.00
|
1 set
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Net weight of machine
7300kg
Transport Package
Wooden Cases
Trademark
Dalian ZT Machinery
Production Capacity
200 Sets/Year
Product Description
Main Feature Variable spindle speeds in 2 steps Ball screws on X,Y and Z axes Servo motor on X, Y and Z-axis Technical specifications:
| Specifications | Unit | X716 |
| Spindle hole taper | mm | 7:24 ISO50 |
| Spindle speed range | r/min | Variable 6-300,30-1500 |
| Distance between spindle axis and column guideway | mm | 8-660 |
| Distance between spindle nose and table surface(V) | mm | 0-700 |
| Distance between spindle axis and table surface(H) | mm | 8-660 |
| Table size | mm | 2500*600 |
| T slots | mm | 5/20/100 |
| Table travel-X | mm | 1800(2000) |
| Table travel-Y | mm | 700 |
| Table feed-X/Y | mm/min | 2.5-3000 |
| Table feed-Z | mm/min | 2.5-2500 |
| Table rapid feed X/Y/Z | mm/min | 6000/6000/3000 |
| Main motor power | Kw | 11 |
| Torque of X/Y/Z axis AC servo motor | Nm | 18/23/18 |
| Cooling pump motor power | w | 90 |
| Overall size | mm | 4380*2520*2800 |
| Weight | kg | 9000 |
| NO. | Item | Specifications | Q'ty. |
| 1 | Milling machine | X716 | 1 |
| 2 | Draw bar | | 1 |
| 3 | IS050 Milling chuck | 4,6,8,12,16, 18,12,26 | 1set |
| 4 | IS050 taper shell end mill holder | ISO50-Φ40 | 1 |
| 5 | 7: 24 middle cover | 7: 24 IS050/MS4 | 1 |
| 6 | Oil gun | | 1 |
| 7 | Foundation bolt | M16×450 | 6 |
| 8 | Allen wrench | 5,8,10 | 1 |
| 9 | Double-ended wrench | 27×30 | 1 |
| 10 | Double-ended wrench | 36×41 | 1 |
Work Shop
Packing & Delivery:
>>
