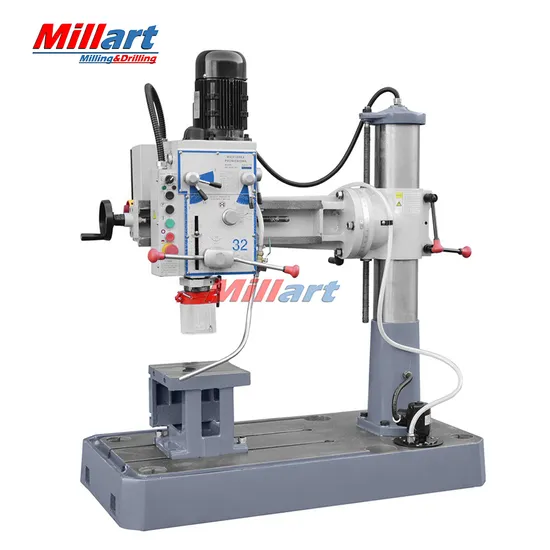

Universal Radial Drilling Machine Z3032X7p Z3032X7

Product Description

Universal Radial Drilling Machine Z3032X7P Z3032X7
Features:
With wide range of speed, with manual-power feed. The feed of machines are very easily engaged and disengaged at any time.
The radial arm can rotated and can tilted± 45° , it reliable and easy job can be done.
Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
The machine with small appearance and much function, the machine are widely used for drilling, counter boring, reaming, tapping etc
Technical parameter:

Model	Z3032×7P	Z3032×7
Max. Drilling capacity(mm)	32	32
Max. Tapping capacity(mm)	Cost lron20 Steel16	Cast lron 20 Steel16
Distance spindle axis to column generating line	300~700	300~700
Diameter of column(mm)	150	150
Spindle taper	MT3	MT3
Spindle travel	130	130
Spindle speeds range(mm)	100~1600	100~1600
Spindle speeds series	8	8
Spindle feeds(r/min)	0.08\0.14\0.23	0.08\0.14\0.23
Rotary angle of rocker in hirizontal plane( °)	360	360
Distance between spindle nose to working surface of base(mm)	275~680	275~680
Dimension of worktable(mm)	250×250×250	250×250×250
Diameter of base(mm)	1200×625×155	1050×550×120
Overall size(mm)	1235×625×1230	1235×550×1195
Motor(w)	750 or 1100	750 or 1100
G.W./N.W.(Kg)	580/500	390/310
Packing dimension(cm)	127×69×137	122×62×128

---
